Honeywell TH8110U1003 HONYTH8110U1003
  1. pin-int

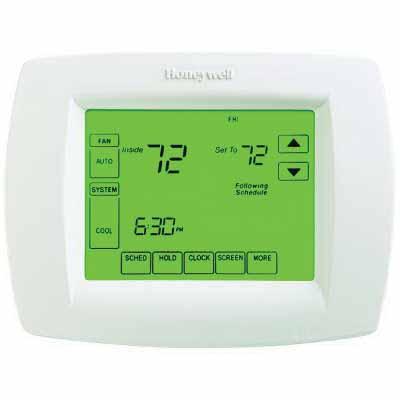

Honeywell VisionPRO 8000 Series TH8110U1003 Thermostat, 20 to 30 VAC, 750 mV, 0.6 to 1 A, 15 to 25 W

  • Manufacturer: Honeywell International Inc
  • Brand Name: Honeywell
  • Part#: HONYTH8110U1003
  • MPN: TH8110U1003
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at All Branches

Honeywell Thermostat, VisionPRO 8000 Series, 20 to 30 VAC, 750 mV, 0.6 to 1 A, 15 to 25 W Power, 50/60 Hz Frequency, Programmability: 7 day Program, Changeover: Auto, Manual, Battery, Hardwired Power Source, Up to 1 Heat/1 Cool Stages, Switch Position: HEAT-OFF-COOL-AUTO (System), AUTO-ON-CIRC (Fan), Thermistor Sensing Element, 10 sq-in Universal Touchscreen Display, +/-1 deg F Differential, 40 to 90 deg F Heating, 50 to 99 deg F Cooling Settings, 5 to 90% RH Non-Condensing Humidity, Horizontal Mounting, Cool Current: 1 A Running, Terminal Designation: R, RC, C, W (O/B), Y, G, S1, S2, Fan Current: 0.6 A Running, Heat Current: 1 A Running, Premier White, Dimensions: 4-9/16 in H x 6 in W x 1-1/4 in D

Amperage Rating      :      0.6 to 1 A
Changeover      :      Auto, Manual
Color      :      Premier White
Cool Current      :      1 A Running
Differential Temperature      :      +/-1 deg F
Dimensions      :      4-9/16 in H x 6 in W x 1-1/4 in D
Display Type      :      10 sq-in Universal Touchscreen
Fan Current      :      0.6 A Running
Frequency Rating      :      50/60 Hz
Heat Current      :      1 A Running
Humidity Rating      :      5 to 90% RH Non-Condensing
Mounting Type      :      Horizontal
Power Rating      :      15 to 25 W
Power Source      :      Battery, Hardwired
Programmability      :      7 day Program
Sensing Element      :      Thermistor
Series      :      VisionPRO 8000 Series
Stages      :      Up to 1 Heat/1 Cool
Switch Position      :      HEAT-OFF-COOL-AUTO (System), AUTO-ON-CIRC (Fan)
Temperature Settings      :      40 to 90 deg F Heating, 50 to 99 deg F Cooling
Terminal Designation      :      R, RC, C, W (O/B), Y, G, S1, S2
Voltage Rating      :      20 to 30 VAC, 750 mV
  • VisionPro 8000 has responsive programming for optimal comfort and energy savings
  • It offers you features like touch screen interaction, a real-time clock and a backlit display, if you value comfort, choose VisionPro and enjoy it for year to come
  • Lithium metal batteries contained in equipment, 9 hazmat information
  • Energy savings - program to save upto 33% on annual heating and cooling costs
  • #1 choice of homeowners - Honeywell is the leading brand in temperature control
  • Large, clear backlit digital display - easy to read in various lighting conditions
  • Programmable fan - offers increased indoor air quality when combined with a Honeywell whole-house air cleaner
  • Effortless, menu-driven programming - simplifies programming by responding to your choices
  • Precise comfort control (+/- 1 deg F) maintains consistent comfort
  • Change/check reminders, real-time clock
  • Built-in humidity sensor - displays current humidity and allows you to control dehumidification
