Honeywell TH6220D1028 HONTH6220D1028
  1. pin-int

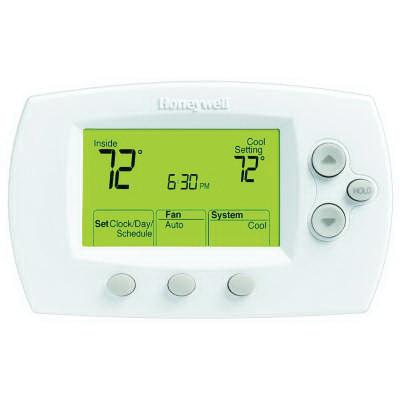

Honeywell FocusPRO 6000 Series TH6220D1028 Thermostat, 20 to 30 VAC, 750 mV, 0.02 to 1 A

  • Manufacturer: Honeywell International Inc
  • Brand Name: Honeywell
  • Part#: HONTH6220D1028
  • MPN: TH6220D1028
  • UPC: 085267262033
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at All Branches

Honeywell Thermostat, FocusPRO 6000 Series, 20 to 30 VAC, 750 mV, 0.02 to 1 A, 50/60 Hz Frequency, Programmability: 5-1-1, 5-2 day Program, Changeover: Auto, Manual, Battery, Hardwired Power Source, Up to 2 Heat/2 Cool Conventional Systems, Up to 2 Heat/1 Cool Heat Pump Stages, Switch Position: HEAT-OFF-COOL-AUTO-EMERGENCY HEAT (System), AUTO-ON (Fan), 5.09 sq-in Large Display, 40 to 90 deg F Heating, 50 to 99 deg F Cooling Settings, 5 to 90% RH Non-Condensing Humidity, Horizontal Mounting, Cool Current: Y and Y2: 0.02 to 1 A Running, Terminal Designation: R, RC, C, W (O/B), G, Y, W2 (AUX/E), Y2-L, Fan Current: 0.02 to 0.5 A Running, Heat Current: W: 0.02 to 1 A Running, W2 (AUX): 0.02 to 0.5 A Running, E: 0.02 to 1 A Running, Premier White, Dimensions: 3-9/16 in H x 5-13/16 in W x 1-1/2 in D

Amperage Rating      :      0.02 to 1 A
Changeover      :      Auto, Manual
Color      :      Premier White
Cool Current      :      Y and Y2: 0.02 to 1 A Running
Dimensions      :      3-9/16 in H x 5-13/16 in W x 1-1/2 in D
Display Type      :      5.09 sq-in Large
Fan Current      :      0.02 to 0.5 A Running
Frequency Rating      :      50/60 Hz
Heat Current      :      W: 0.02 to 1 A Running, W2 (AUX): 0.02 to 0.5 A Running, E: 0.02 to 1 A Running
Humidity Rating      :      5 to 90% RH Non-Condensing
Mounting Type      :      Horizontal
Power Source      :      Battery, Hardwired
Programmability      :      5-1-1, 5-2 day Program
Series      :      FocusPRO 6000 Series
Stages      :      Up to 2 Heat/2 Cool Conventional Systems, Up to 2 Heat/1 Cool Heat Pump
Switch Position      :      HEAT-OFF-COOL-AUTO-EMERGENCY HEAT (System), AUTO-ON (Fan)
Temperature Settings      :      40 to 90 deg F Heating, 50 to 99 deg F Cooling
Terminal Designation      :      R, RC, C, W (O/B), G, Y, W2 (AUX/E), Y2-L
Voltage Rating      :      20 to 30 VAC, 750 mV
  • Honeywell's FocusPRO 6000 offers the perfect blend of features, performance, energy savings and value
  • With an easy-to-read digital display, FocusPro 6000 prominently displays both room and set temperature
  • Selectable to 5-1-1 (weekdays, saturday, sunday) or 5-2 (weekdays, weekend) programmable thermostat
  • Large, clear backlit digital display - easy-to-read in various lighting conditions
  • Display size options available in large screen or standard
  • Precise comfort control (+/- 1 deg F) maintains consistent comfort to the highest level of accuracy
  • Simplified programming and operation, easy change battery door - flip out door allows for easy battery replacement without removing or disassembling the thermostat
  • Built-in instructions - simple, pull-out instruction manual
  • Adaptive intelligent recovery - ensures programmed temperature is reached by programmed time
  • Temperature range stops - prevents user from setting the temperature too high or too low
  • Energy savings - program to save upto 33% on annual heating and cooling costs
  • #1 choice of homeowners - Honeywell is the leading brand in temperature control
  • RedLink wireless models - relocate a thermostat, upgrade equipment, add zoning and more-quickly and easily-without wires
