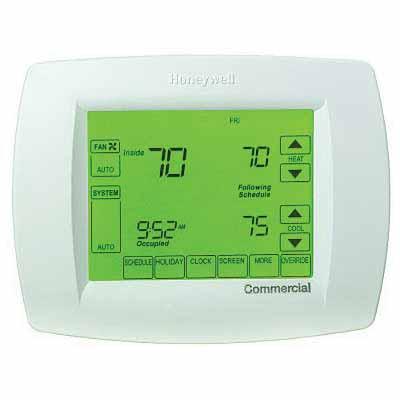

Honeywell TB8220U1003/U HONTB8220U1003
  1. pin-int

Honeywell VisionPRO 8000 Series TB8220U1003/U Thermostat, 24 VAC, 0.02 to 1 A, 0.48 to 24 W

  • Manufacturer: Honeywell International Inc
  • Brand Name: Honeywell
  • Part#: HONTB8220U1003
  • MPN: TB8220U1003/U
  • UPC: 085267263573
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at All Branches

Honeywell Thermostat, VisionPRO 8000 Series, 24 VAC, 0.02 to 1 A, 0.48 to 24 W Power, 50/60 Hz Frequency, Programmability: 7 day Program, Changeover: Auto, Battery Power Source, Up to 2 Heat/2 Cool Conventional Systems, Up to 3 Heat/2 Cool Heat Pump Stages, Switch Position: HEAT-OFF-COOL-AUTO-EM.HEAT (System), AUTO-ON (Fan), Touchscreen Display, 40 to 90 deg F Heating, 50 to 99 deg F Cooling Settings, 5 to 90% RH Non-Condensing Humidity, Horizontal Mounting, Cool Current: Y: 0.02 to 1 A Running, Terminal Designation: R, RC, W (O/B), W2 (W1), Y, Y2, L, A, G, C, S1, S2, Fan Current: G: 0.02 to 0.60 A Running, Heat Current: W: 0.02 to 1 A Running, Premier White, Dimensions: 4-9/16 in H x 6 in W x 1-3/8 in D

Amperage Rating      :      0.02 to 1 A
Changeover      :      Auto
Color      :      Premier White
Cool Current      :      Y: 0.02 to 1 A Running
Dimensions      :      4-9/16 in H x 6 in W x 1-3/8 in D
Display Type      :      Touchscreen
Fan Current      :      G: 0.02 to 0.60 A Running
Frequency Rating      :      50/60 Hz
Heat Current      :      W: 0.02 to 1 A Running
Humidity Rating      :      5 to 90% RH Non-Condensing
Mounting Type      :      Horizontal
Power Rating      :      0.48 to 24 W
Power Source      :      Battery
Programmability      :      7 day Program
Series      :      VisionPRO 8000 Series
Stages      :      Up to 2 Heat/2 Cool Conventional Systems, Up to 3 Heat/2 Cool Heat Pump
Switch Position      :      HEAT-OFF-COOL-AUTO-EM.HEAT (System), AUTO-ON (Fan)
Temperature Settings      :      40 to 90 deg F Heating, 50 to 99 deg F Cooling
Terminal Designation      :      R, RC, W (O/B), W2 (W1), Y, Y2, L, A, G, C, S1, S2
Voltage Rating      :      24 VAC
  • The TB8220 commercial VisionPro 8000 touchscreen programmable thermostat is an effortless, 7 day programmable thermostat that provides universal system compatibility, precise comfort control and is easy to program
  • Large, clear display with backlight shows the current and set temperature and time even in the dark
  • Menu driven programming make setup effortless
  • Beautiful ergonomic design is smart and sophisticated to match your customers lifestyle
  • Touchscreen interaction real-time clock keeps time during power failures and automatically updates to daylight savings
  • Saving changes notification lets you know when the schedule changes have been saved
  • Change reminders let you know when to replace the batteries
  • Holiday override options allow you to override the program schedule, as desired
  • Speedy same schedule programming no need to copy multiple days
  • Armchair programming allows you to remove the thermostat from the wall for programming
  • Lithium metal batteries contained in equipment, 9 hazmat information
