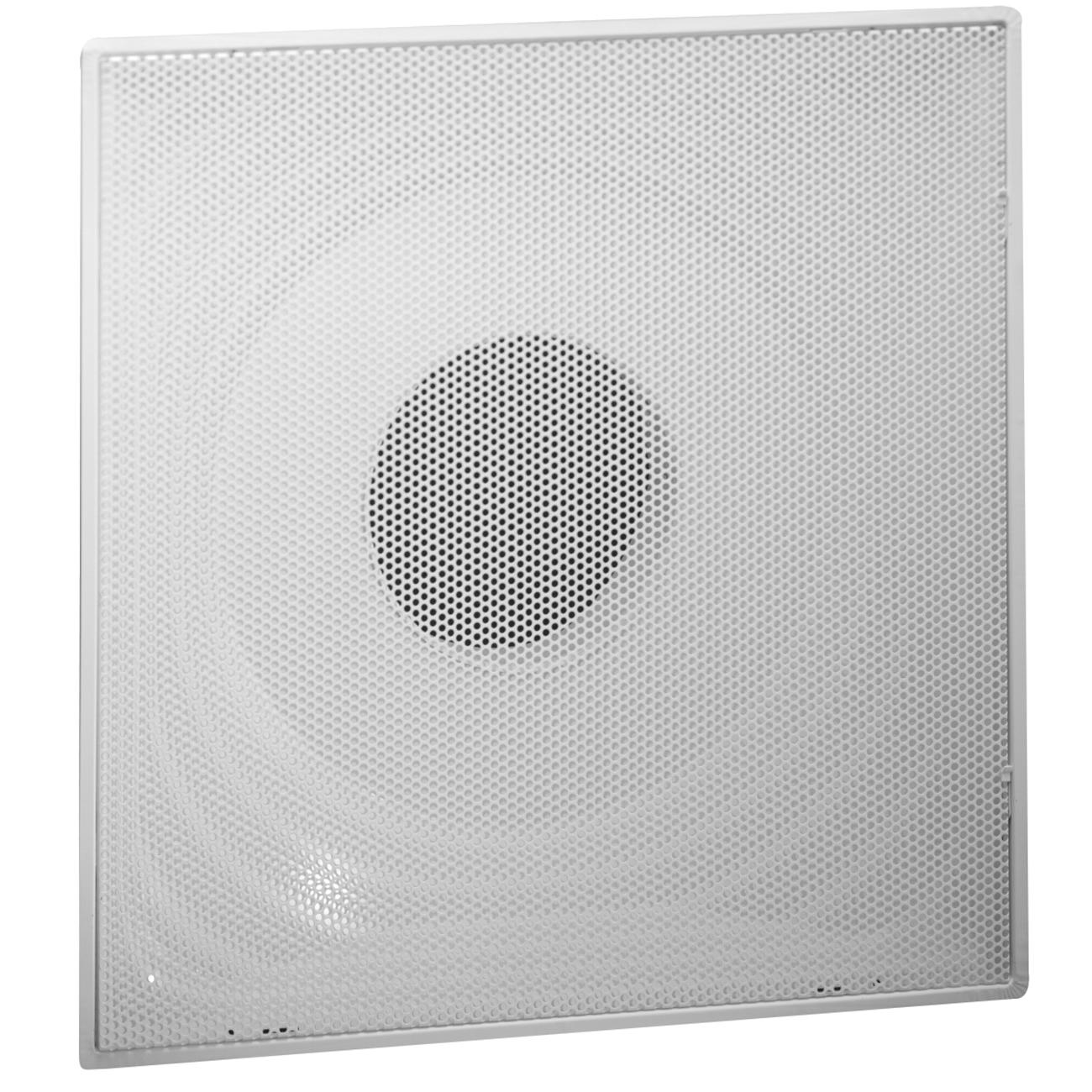

Hart & Cooley® CBPS8 Return Grille With 8 in Neck, Steel, Bright White Enamel
- Manufacturer: Duravent Group
- Brand Name: Hart & Cooley®
- Part#: HARCBPS8
- MPN: CBPS8
- UPC: 684048508027
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
Hart & Cooley® Return Grille, Series: CBPS, 420 cfm at 1200 Neck Velocity, 7-7/8 in Opening Duct, 4-7/8 in Length, 23-3/4 in Width, 23-3/4 in Height, Steel, Bright White Enamel
| CFM Rating | : | 420 cfm at 1200 Neck Velocity |
| Color | : | Bright White Enamel |
| Duct Size | : | 7-7/8 in Opening |
| Height | : | 23-3/4 in |
| Length | : | 4-7/8 in |
| Material | : | Steel |
| Series | : | CBPS |
| Width | : | 23-3/4 in |
- Removable, hinged face allows for easy access to air pattern control core
- Individually adjustable pattern deflectors factory-set at four-way deflection, can be field adjusted for one, two, three-way air patterns
- Unique 2 in high collar permits easy flex connections
- For 2 x 2 ft T-bar ceiling systems
