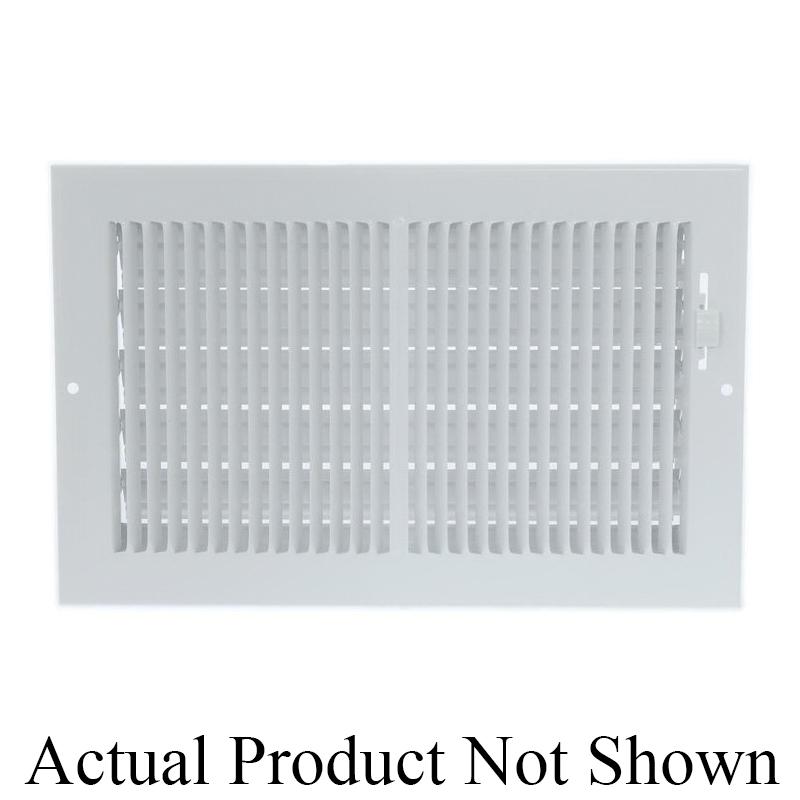

Hart & Cooley® 661188W Ceiling/Sidewall Register With Multi-Shutter Damper, 18 x 8 in, 2-Way Deflection, Steel
- Manufacturer: Duravent Group
- Brand Name: Hart & Cooley®
- Part#: HAR188661
- MPN: 661188W
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
Hart & Cooley® Ceiling/Sidewall Register, Series: 661 Series, 18 x 8 in Size, 1/3 in Grille Spacing, 2-Way Deflection, 45 deg Deflection, CFM Rating: 680 cfm, 0.68 sq-ft, 18 in Width, 8 in Height, Steel, Bright White Enamel
| Area | : | 0.68 sq-ft |
| CFM Rating | : | 680 cfm |
| Deflection Angle | : | 45 deg |
| Deflection Type | : | 2-Way |
| Finish | : | Bright White Enamel |
| Grille Spacing | : | 1/3 in |
| Height | : | 8 in |
| Material | : | Steel |
| Series | : | 661 Series |
| Size | : | 18 x 8 in |
| Width | : | 18 in |
- For heating or cooling
- Ideal for shallow duct installations
- 1/3 in spaced fins set at 45 deg
- Galvanized multi-shutter valve
- 1-5/8 in depth when fully opened
- Interlocking valve louvers for positive shut-off
