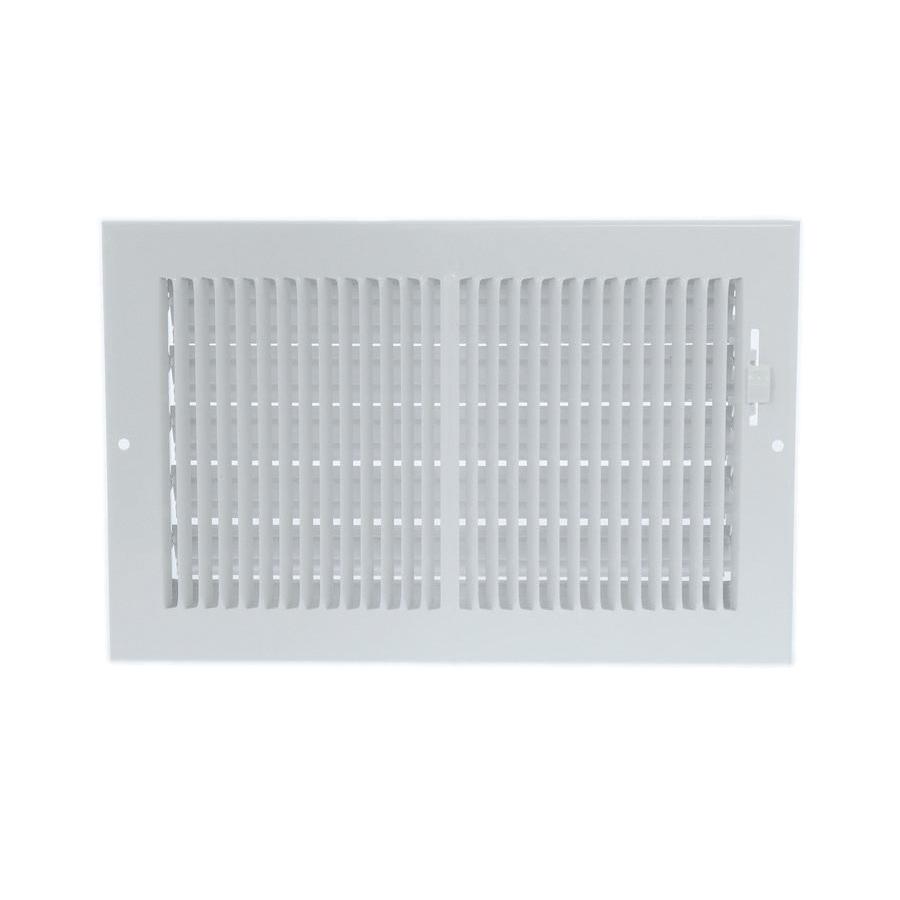

Hart & Cooley® 661-10X6 Supply Register With Multi-Shutter Damper, 6 x 10 in, 2-Way Deflection, Steel, Enamel
- Manufacturer: Duravent Group
- Brand Name: Hart & Cooley®
- Part#: HAR106661
- MPN: 661-10X6
- UPC: 684048108197
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
Hart & Cooley® Supply Register, 661 Series, 6 x 10 in, 1/3 in Grille Spacing, 2-Way Deflection, 75 to 245 cfm, 0.245 sq-ft Area, 1-5/8 in Length, 11-5/8 in Width, 7-5/8 in Height, Steel, Finish: Enamel, Bright White, 5-1/2 in H x 9-7/16 in W Duct
| Area | : | 0.245 sq-ft |
| CFM Rating | : | 75 to 245 cfm |
| Color | : | Bright White |
| Deflection Angle | : | 45 deg |
| Deflection Type | : | 2-Way |
| Duct Opening Size | : | 1-1/2 in |
| Duct Size | : | 5-1/2 in H x 9-7/16 in W |
| Finish | : | Enamel |
| Grille Spacing | : | 1/3 in |
| Height | : | 7-5/8 in |
| Length | : | 1-5/8 in |
| Material | : | Steel |
| Series | : | 661 Series |
| Size | : | 6 x 10 in |
| Width | : | 11-5/8 in |
- All steel construction
- For heating or cooling
- Ideal for shallow duct installations
- 1/3 in spaced fins set at 20 deg
- Galvanized multi-shutter valve
- 1-5/8 in D when fully opened
- Interlocking valve louvers for positive shut-off
