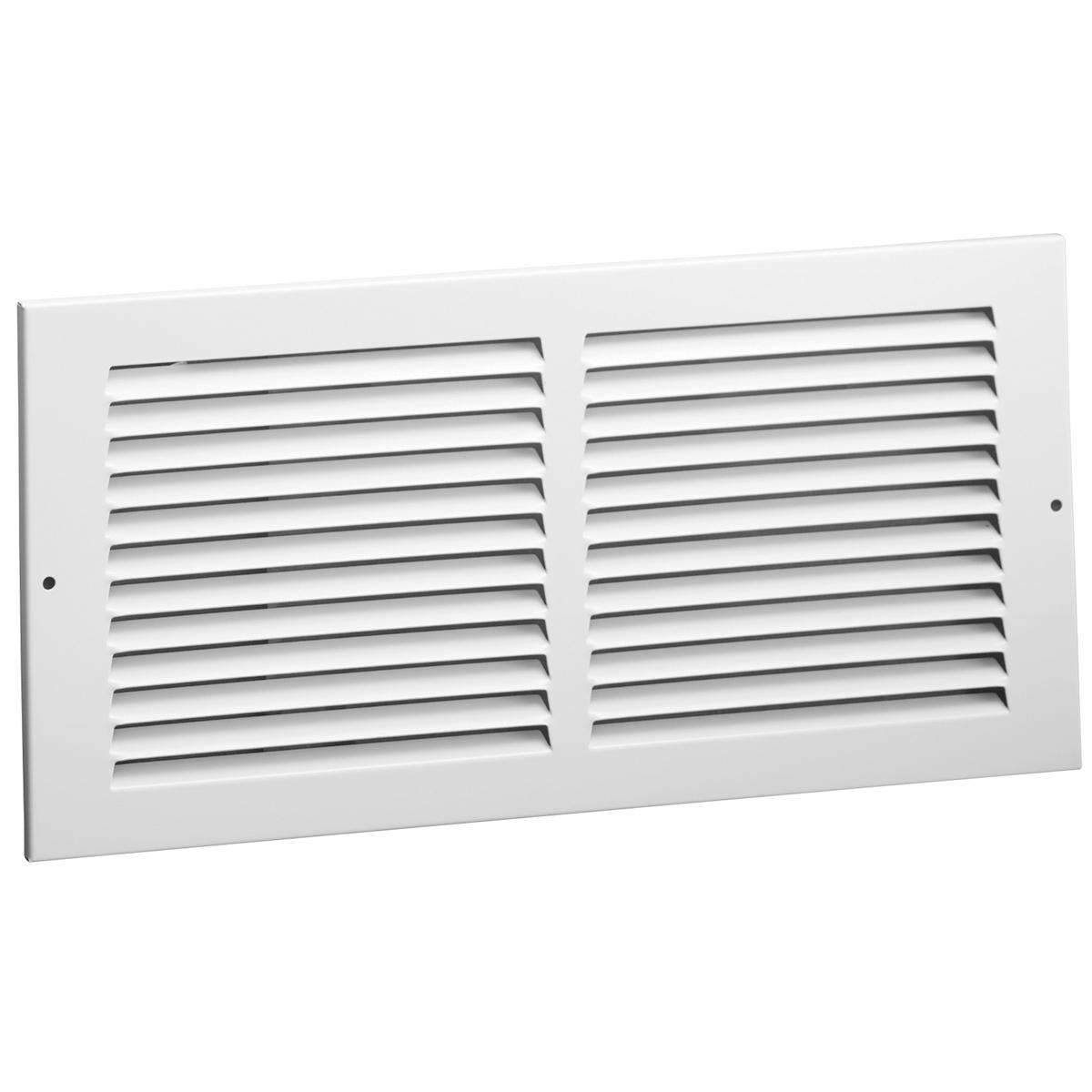

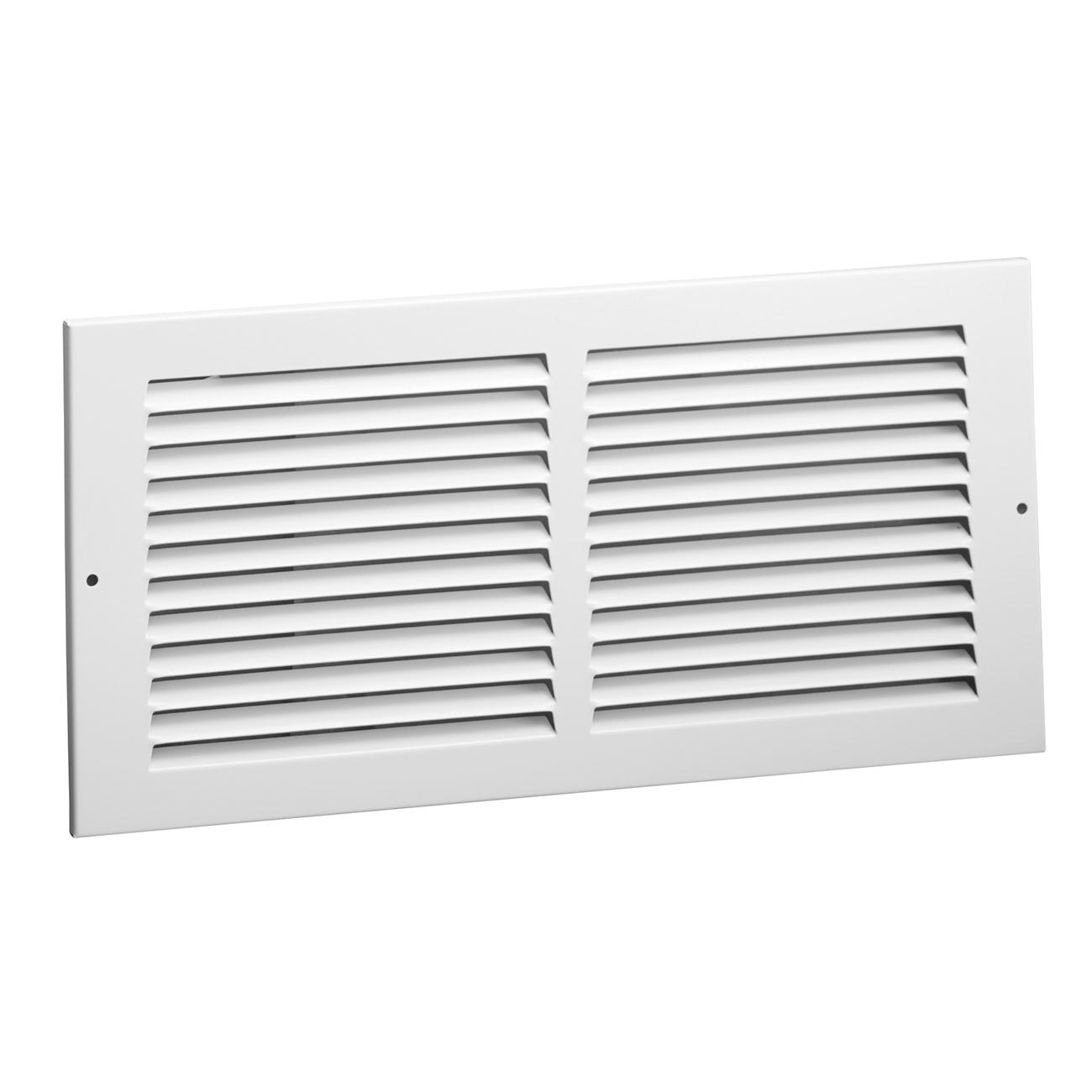

Hart & Cooley® 672 Series 043363 Return Air Grille, 24 x 8 in, Steel, Bright White
- Manufacturer: Duravent Group
- Brand Name: Hart & Cooley®
- Part#: HAR248672
- MPN: 043363
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
Hart & Cooley® Return Air Grille, Series 672 Series, 24 x 8 in, Grille Spacing: 1/2 in, Deflection Type: 40 deg, 192 sq-in Area, 25-3/4 in Length, 9-3/4 in Width, Steel, Bright White
| Area | : | 192 sq-in |
| CFM Rating | : | 524 cu-ft/min at 600 Face Velocity |
| Color | : | Bright White |
| Deflection Type | : | 40 deg |
| Finish | : | Bright White |
| Grille Spacing | : | 1/2 in |
| Height | : | 9-3/4 in |
| Length | : | 25-3/4 in |
| Material | : | Steel |
| Model | : | 672 |
| Series | : | 672 Series |
| Size | : | 24 x 8 in |
| Width | : | 9-3/4 in |
- 1/2 in spaced fins set at 40 deg
- Exceptional free area
- 5/16 in margin turn back
Full Engineering Drawing
