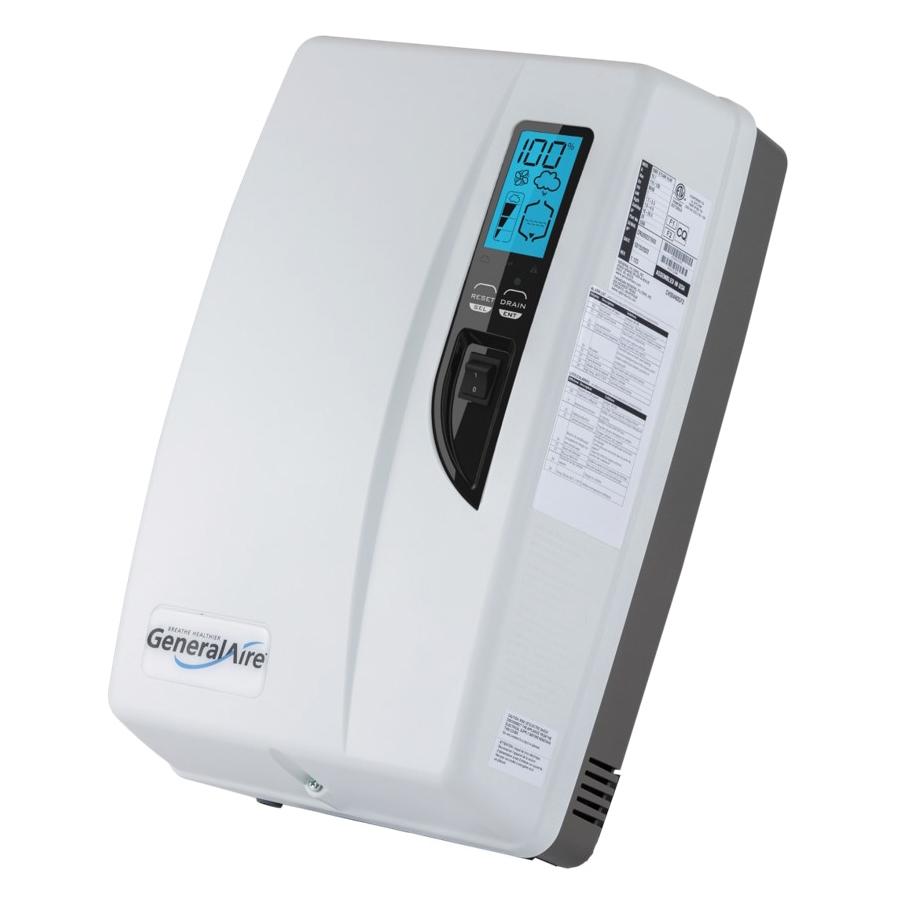

GeneralAire® 5500 Steam Humidifier, 115/230 VAC, 2 to 30 A, Digital Automatic Humidistat Control
- Manufacturer: General Filters
- Brand Name: GeneralAire®
- Part#: GEN5500STEHUM
- MPN: 5500
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
GeneralAire® Steam Humidifier, 115/230 VAC, 2 to 30 A, 50/60 Hz, 1.86 kW, 4.05 kW, 1 ph, Digital Automatic Humidistat Control, 4.9 lb, 9.9 lb, 5500 sq-ft Coverage, Upto 28.5 gpd Water Usage Rate, Screw Connection Type, 3/4 in Connection, 20 A Circuit Protection, 12 AWG Wire, Duct Mount, <140 deg F, 21 in H x 14 in W x 8-1/4 in D, Additional Information: 125 to 1250 us/cm Conductivity, 1/4 in OD Compression Adapter to 3/4 in BSP Water Fill, 0.09 to 0.16 gpm Water Fill
| Additional Information | : | 125 to 1250 us/cm Conductivity, 1/4 in OD Compression Adapter to 3/4 in BSP Water Fill, 0.09 to 0.16 gpm Water Fill |
| Amperage Rating | : | 2 to 30 A |
| Capacity | : | 4.9 lb, 9.9 lb |
| Circuit Protection | : | 20 A |
| Connection Size | : | 3/4 in |
| Connection Type | : | Screw |
| Control Type | : | Digital Automatic Humidistat |
| Coverage Area | : | 5500 sq-ft |
| Dimensions | : | 21 in H x 14 in W x 8-1/4 in D |
| Frequency Rating | : | 50/60 Hz |
| Mounting Type | : | Duct |
| Phase | : | 1 ph |
| Power Rating | : | 1.86 kW, 4.05 kW |
| Temperature Rating | : | <140 deg F |
| Voltage Rating | : | 115/230 VAC |
| Water Usage Rate | : | Upto 28.5 gpd |
| Wire Size | : | 12 AWG |
- One unit for both 115 V and 230 V installations (via internal switch)
- One cylinder for both regular and low water conductivity
- Spark plug style wire connectors for easy cylinder replacement
- Enhanced, easy to read control module with 16 status codes and activity icons that provide real time monitoring
- Single captive screw cover release for easy access
- Screw permanently affixed to cover to prevent dropping, losing
- Water tempering for safety
- Includes installation kit and heavy-duty, pre-drilled metal mounting straps that allow for installation to wall studs (16 in)
- Includes a GFX4 automatic humidistat (controls the furnace blower motor)
