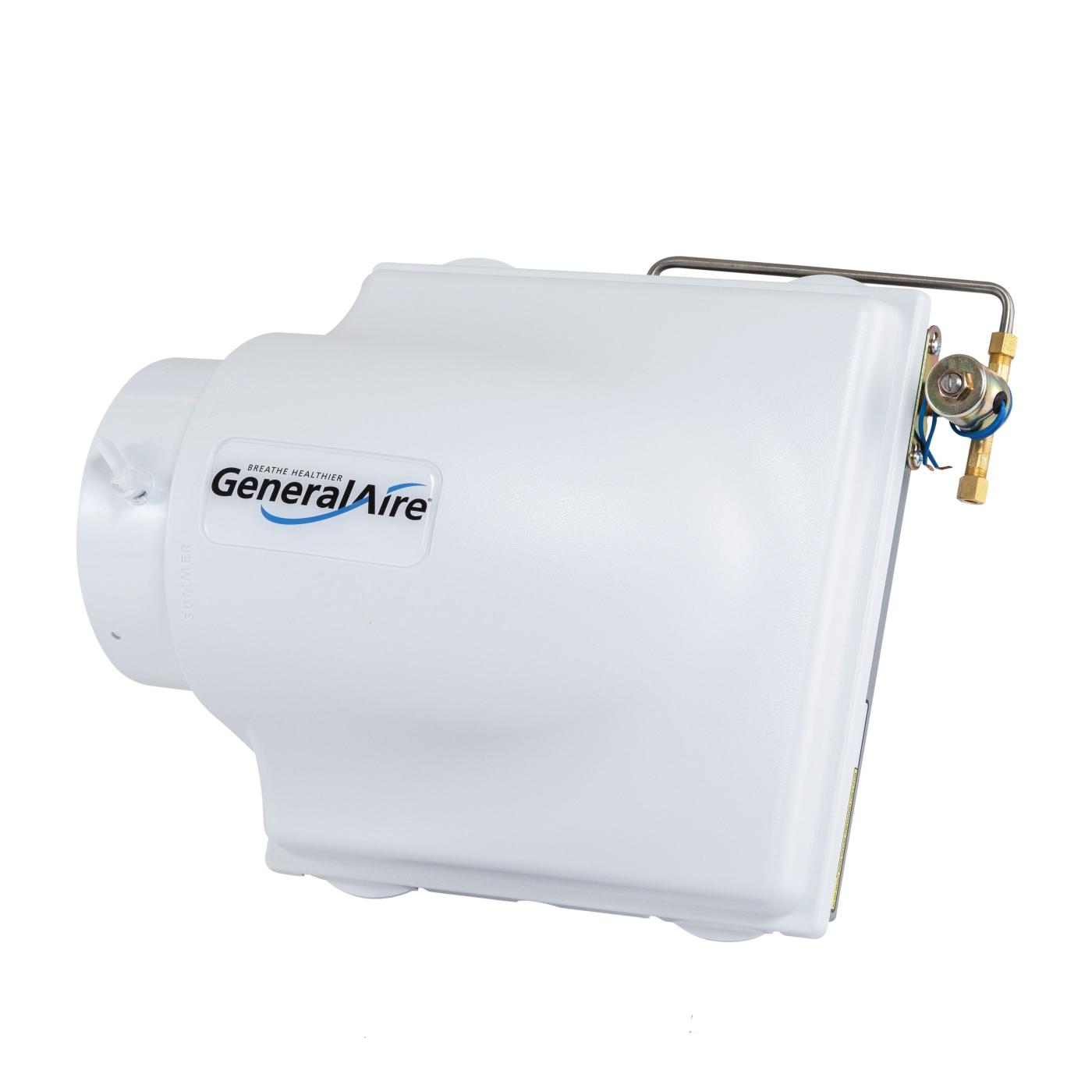

GeneralAire® 3200M Evaporative Bypass Humidifier, 24 V, Manual Humidistat Control, Plastic
- Manufacturer: General Filters
- Brand Name: GeneralAire®
- Part#: GEN3200M
- MPN: 3200M
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
Your furnace sends warm air through the humidifier and a water-soaked Vapor Pad®, evaporating water within the Vapor Pad®. Newly-moistened air is then delivered throughout your home via your home's duct system. Breathe Healthier® with a GeneralAire® 3200 Evaporative Humidifier.
GeneralAire® Evaporative Bypass Humidifier, 24 V, 9-1/8 in H x 9-1/8 in W Plenum Opening, Manual Humidistat Control, 6 in Bypass Opening, 3200 sq-ft Coverage, Upto 12 gpd Water Usage Rate, Duct, Wall Mount, Plastic, 12-1/4 in H x 12 in W x 8-1/2 in D
| Bypass Opening | : | 6 in |

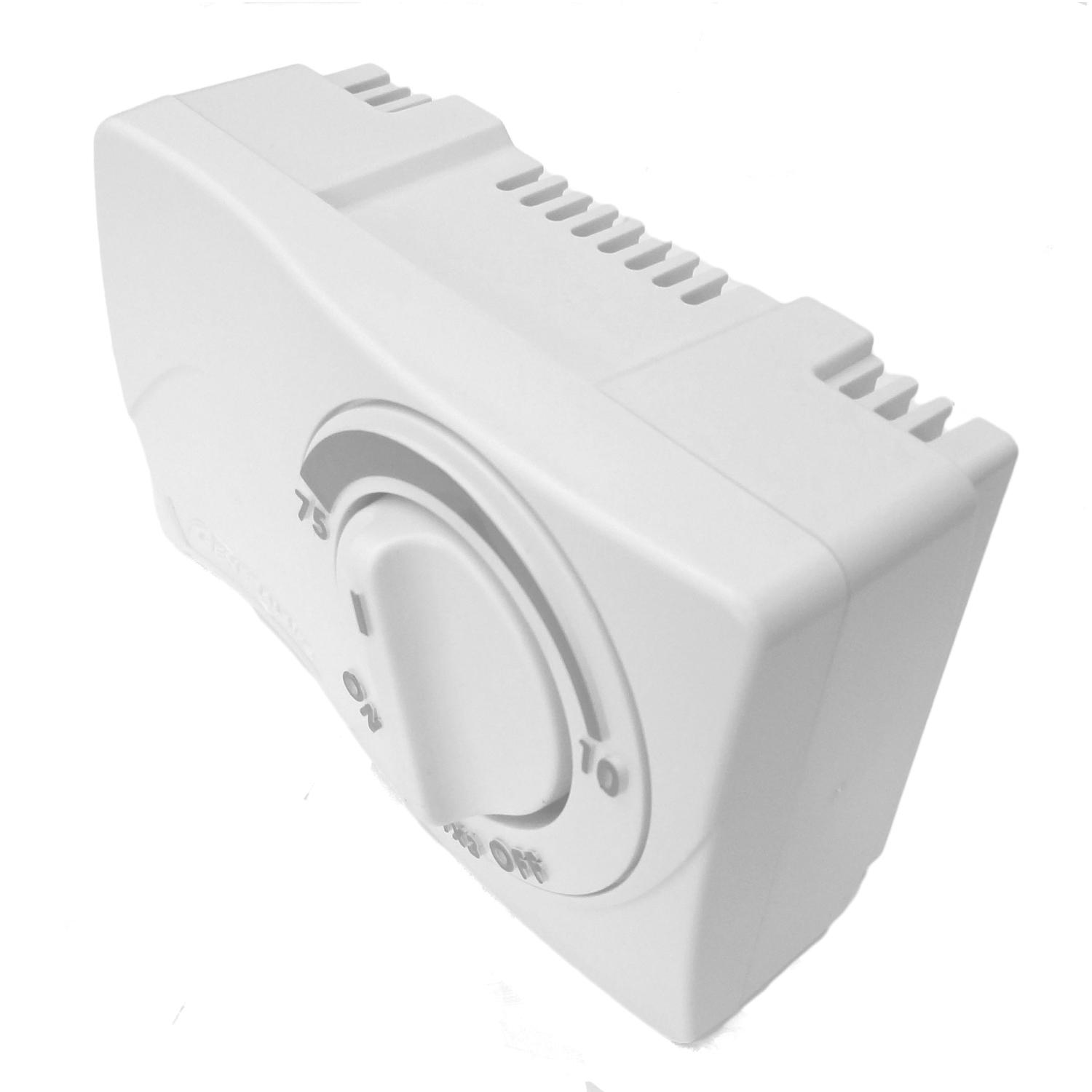

| Control Type | : | Manual Humidistat |
| Coverage Area | : | 3200 sq-ft |
| Dimensions | : | 12-1/4 in H x 12 in W x 8-1/2 in D |
| Material | : | Plastic |
| Mounting Type | : | Duct, Wall |
| Plenum Opening | : | 9-1/8 in H x 9-1/8 in W |
| Voltage Rating | : | 24 V |
| Water Usage Rate | : | Upto 12 gpd |
- Low-profile cover that forces air directly through the Vapor Pad® at its warmest point
- Stainless steel distributor tube for cold or hot water supply
- Redesigned cover and chassis to direct hot furnace air directly through the Vapor Pad®
- Reduced Vapor Pad® frame for maximum pad exposure
- Snap-in-place, easy lift-off cover
- Sturdy two-piece Vapor Pad® frame that easily pulls apart to release and replace the Vapor Pad®
