Fieldpiece SC57 FLDSC57
  1. pin-int

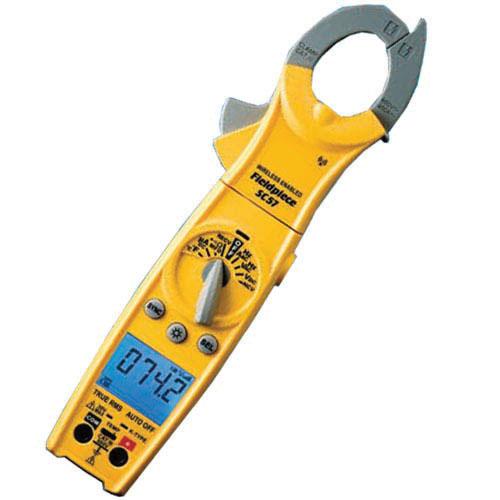

Fieldpiece SC57 Clamp Meter, 600 V, 400 A, 1000 to 9999 Ohm, 1.2 in Jaw, 20 to 400 Hz, Backlit LCD Display

  • Manufacturer: Fieldpiece Instruments
  • Brand Name: Fieldpiece
  • Part#: FLDSC57
  • MPN: SC57
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at All Branches

As a proud owner of the first wireless fieldpiece clamp meter, SC57, you are well on your way to eliminating tangled wires. SC57 will give you the power to receive measurements wirelessly from anywhere on the jobsite. For instance, you can transmit indoor wet bulb measurements for target superheat over the air while you work at the condenser.

Fieldpiece Clamp Meter, 600 V, 400 A, 1000 to 9999 Ohm Resistance, 1.2 in Jaw, 10000, 20 to 400 Hz, Backlit LCD Display, +/-1%, +/-6% AC Current Accuracy, +/-1%, +/-6% Voltage Accuracy, CAT III 600 V, 9 V, 32 to 122 deg F Operating, 0 to 1000 uF, 0.1 A, 0.1 V, 0.1 Ohm, 0.1 uF Resolution, Bright Blue, 258.3 mm H x 71.2 mm W x 42.7 mm D, Additional Information: Battery Power Source

AC Current Accuracy      :      +/-1%, +/-6%
Additional Information      :      Battery Power Source
Amperage Rating      :      400 A
Capacitance      :      0 to 1000 uF
Color      :      Bright Blue
Counts      :      10000
Dimensions      :      258.3 mm H x 71.2 mm W x 42.7 mm D
Display Type      :      Backlit LCD
Frequency Rating      :      20 to 400 Hz
Jaw Capacity      :      1.2 in
Operating Temperature      :      32 to 122 deg F
Power Supply      :      9 V
Resistance      :      1000 to 9999 Ohm
Resolution      :      0.1 A, 0.1 V, 0.1 Ohm, 0.1 uF
Safety Rating      :      CAT III 600 V
Voltage Accuracy      :      +/-1%, +/-6%
Voltage Rating      :      600 V
  • Live temperature split readings while working on the condenser
  • Accurate amps with the blower door firmly closed
  • 180 deg swivel head clamp to easily view your results at any angle
  • Bright blue backlight stays on for 3 min for easy readings
  • Rugged construction to withstand harsh conditions
  • Automatic power off (APO) to preserve your battery life when clamp isn't in use
  • Non-contact voltage warning via audio and visual alarms
  • Easy field calibration with convenient pot location to quickly calibrate K-type thermocouples
  • True RMS to accurately measure non-sinusoidal wave forms
  • Auto ranging for quick, accurate readings
