Field Controls SWG-6 FIESWGII6
  1. pin-int

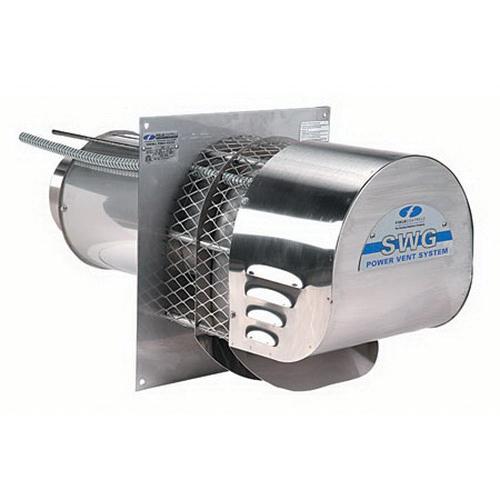

Field Controls SWG-6 Power Venter, 228 W, 3100 rev/min Speed, 416000 Btu/hr BTU, Stainless Steel

  • Manufacturer: Field Controls, LLC
  • Brand Name: Field Controls
  • Part#: FIESWGII6
  • MPN: SWG-6
  • UPC: 090747189304
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at All Branches

The safest, most efficient power venter available today. Gas and oil heating appliances generate heat through the combustion of fuel. The heat is transferred through the heat exchanger and distributed to the conditioned space. The products of combustion, however, must be vented safely out of the structure. In a conventional chimney, venting is achieved by the natural lifting action of the hot combustion gas. New, efficient systems absorb more of the heat in the heat exchanger and produce lower temperature vent gas. Lower temperature gas does not rise as quickly or as reliably as in older, less efficient systems. Power venting or sidewall venting is more economical and safer than chimney venting. A power venter uses a motorized blower to vent the products of combustion. A power venter is interlocked with the appliance to ensure that proper draft is achieved before the appliance burner is activated.

Field Controls Power Venter, 2.1 A, 115 VAC, 60 Hz, 228 W, 3100 rev/min Speed, 6 in Vent, 6 in Inlet, 416000 Btu/hr BTU, 2.65 gal/hr at 100 lb/sq-in, 2.25 gal/hr at 140 lb/sq-in, Stainless Steel, 12 in W x 12-1/4 in H

Amperage Rating      :      2.1 A
BTU Rating      :      416000 Btu/hr
Dimensions      :      12 in W x 12-1/4 in H
Flow Rate      :      2.65 gph at 100 psi, 2.25 gph at 140 psi
Frequency Rating      :      60 Hz
Inlet Size      :      6 in
Material      :      Stainless Steel
Power Rating      :      228 W
Speed Rating      :      3100 rpm
Vent Size      :      6 in
Voltage Rating      :      115 VAC
  • 100% negative pressure in the vent pipe for maximum safety
  • Standard galvanized pipe can be used instead of expensive stainless steel
  • No need to seal vent pipe joints, saving time and money
  • Significantly longer vent lengths than positive pressure, direct vent systems
  • The SWG is recommended by major heating appliance manufacturers
  • Thermal protected
