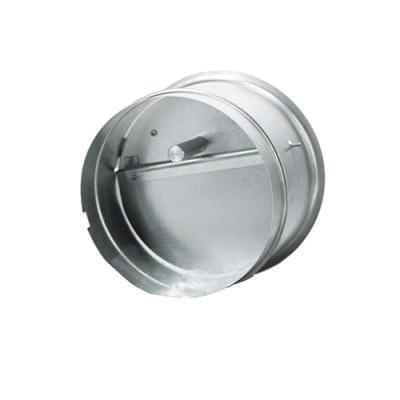

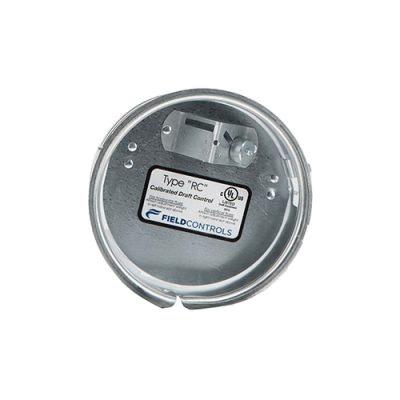

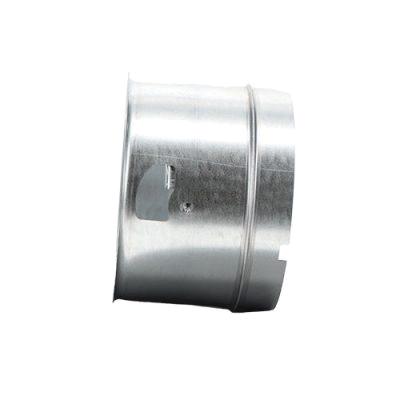

Field Controls 6RC Draft Control, 6 in
- Manufacturer: Field Controls, LLC
- Brand Name: Field Controls
- Part#: FIE6RC
- MPN: 6RC
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
Field Controls Draft Control, Series: RC Series, 6 in Size, 6-5/8 in Length, Additional Information: 28.3 sq-in Capacity, 15-3/4 to 22 in Pipe Circumference
| Additional Information | : | 28.3 sq-in Capacity, 15-3/4 to 22 in Pipe Circumference |
| Length | : | 6-5/8 in |
| Series | : | RC Series |
| Size | : | 6 in |
- The field-type RC oil draft control is furnished as standard equipment on many leading brands of oil or coal fired heating equipment
- The type-RC is calibrated to allow for easy adjustment to the furnace or boiler manufacturer's specifications
- Designed for settings from 0.02 to 0.08 in, this control is so sensitive that instrumentation should be used when adjusting the unit during installation
- Maintains the boiler's draft to burn fuel more efficiently
- Collar included to ensure a safe, snug fit
- Adjust air flow rate to produce a steady, safe and efficient flame without the risk of back drafting
