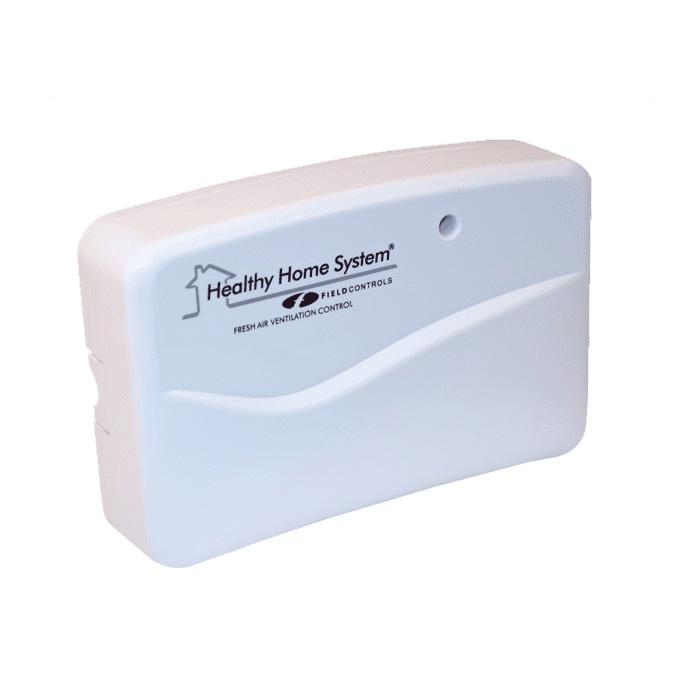

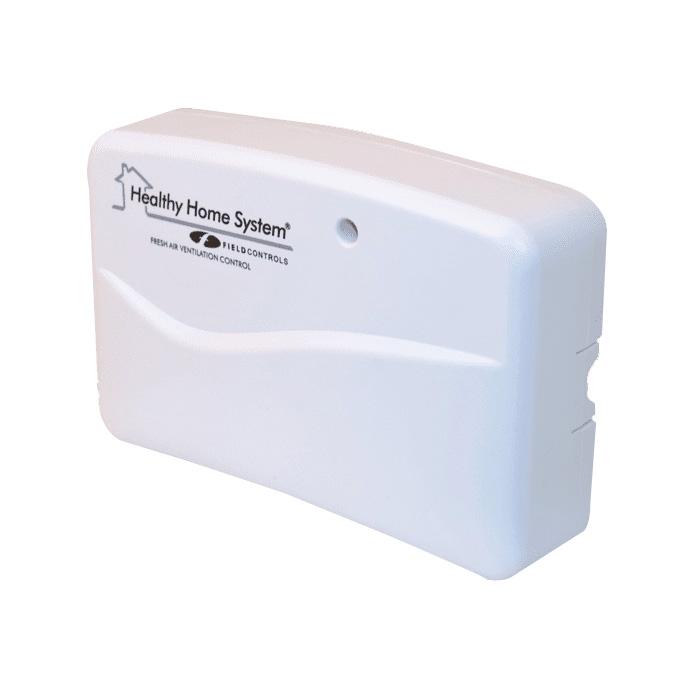

Field Controls Healthy Home System™ 602600100 Fresh Air Ventilation Control, 24 VAC, 0.07 A
- Manufacturer: Field Controls, LLC
- Brand Name: Field Controls
- Part#: FIE602600100
- MPN: 602600100
- UPC: 090747951987
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
The Fresh Air Ventilation Control™ (FAVC) which is part of the Field Controls Healthy Home System™ product line interactively works with residential HVAC system thermostat, in conjunction with the central fan air handler system to periodically introduce controlled amounts of fresh air into the home. The FAVC is designed to provide fresh air ventilation all year long keeping energy conservation, indoor air quality and comfort in mind. The FAVC system meets the requirements of ASHRAE 62.2 standard for ventilation. The controller has several modes of operation - standard mode is designed to work in conjunction with your forced air HVAC fan system and an economy mode designed to function independent of your forced air HVAC fan system. The FAVC will continuously monitor indoor relative humidity and temperature used to regulate R/A duct humidity in the winter months and to prevent humid conditions during the summer months by reducing the ventilation cycles during periods of high dew points. The FAVC will also monitor outdoor air temperature conditions using a sensor mounted to the duct in front of the fresh air damper or heat or energy recovery ventilation products. The controller has built-in protection for furnace plenums during the heating months of winter and shoulder seasons that will prevent condensation and corrosion of the heat exchanger as well as preventing mold growth by habiting ventilation to control humidity levels in the controlled space. The FAVC can monitor multiple exhausting appliances with in your home to adjust ventilation needs based on total appliance operation along with the ability to cycle on or off multiple appliances (dampers, ERV/HRV, HVAC central blower and various exhausting device or fans) to evenly balance fresh air ventilation with in the home.
Field Controls Healthy Home System™ Fresh Air Ventilation Control, 24 VAC, 0.07 A, VA Rating: 1.7 VA, Wire Connection, 3 A, 5 mA Control Output, 5 to 95 % Humidity Rating, 10 to 160 deg F, 4.33 in H x 6.6 in W x 2.6 in D
| Amperage Rating | : | 0.07 A |
| Connection Type | : | Wire |
| Control Output | : | 3 A, 5 mA |
| Dimensions | : | 4.33 in H x 6.6 in W x 2.6 in D |
| Humidity Rating | : | 5 to 95 % |
| Temperature Rating | : | 10 to 160 deg F |
| VA Rating | : | 1.7 VA |
| Voltage Rating | : | 24 VAC |
- Supplied with an outdoor temperature sensor which mounts in the fresh air duct
- Has 3 selectable climate zones with unique ventilation inhibit parameters for the selected climate
- Can provide make-up air in response to an exhausting appliance
- Can utilize an exhaust fan to drive ventilation independent of the central HVAC fan to save energy
- Continuously monitors indoor relative humidity
- Lower excess indoor humidity during hot muggy days by reducing ventilation during these periods to prevent discomfort and mold growth in the home
- Reduce condensation and corrosion of the heat exchanger
- Normal or economy mode of operation
- Multiple climate application mode - normal, hot, cold or disabled
- Simple fresh air ventilation using fresh air damper or HRV or ERV devices
- Monitoring capability up to 4 appliances - multiple bath fans, exhaust fans, clothes dryer, range hood, draft assisted gas log fi replaces or exhaust fan devices
- Monitoring and control capability
- Built-in selectable enthalpy control
- Temperature sensor located in R/A ductwork
- Smart controller adjusts ventilation time based on central fan or appliances in operation
- Low power usage
- Simple installation
- Adjusts ventilation need based on 30 min time periods

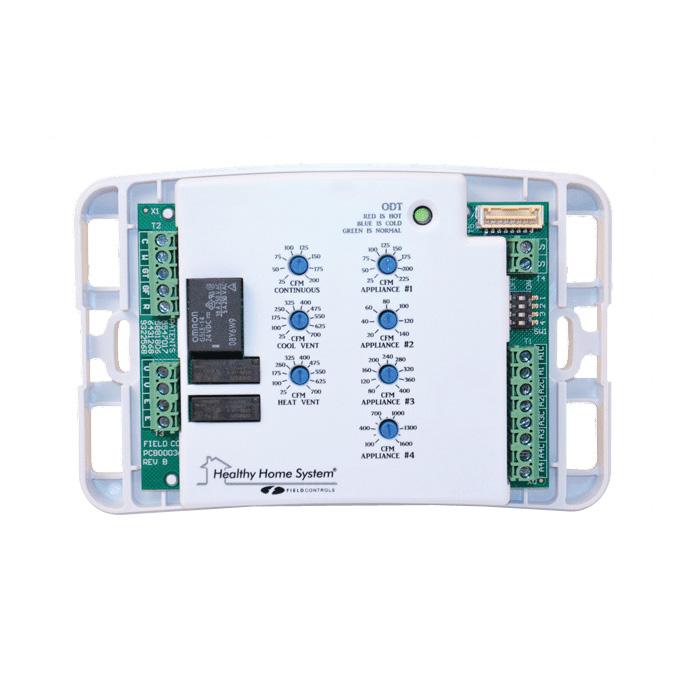

- Versatility - controls, monitors and CFM adjustable for appliances
- Individual heat and cool air flow settings for HVAC central fan
