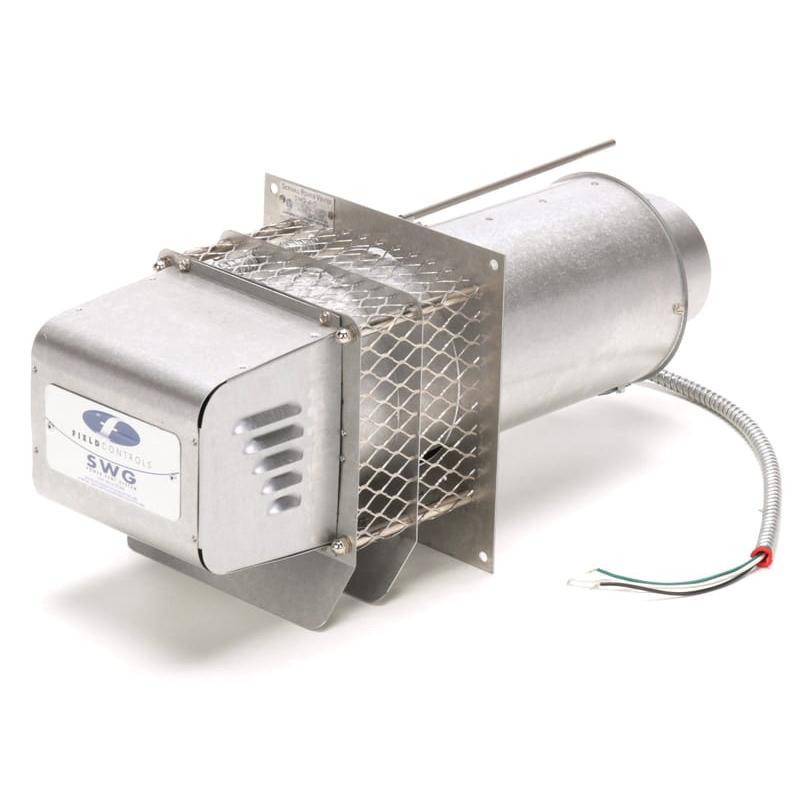

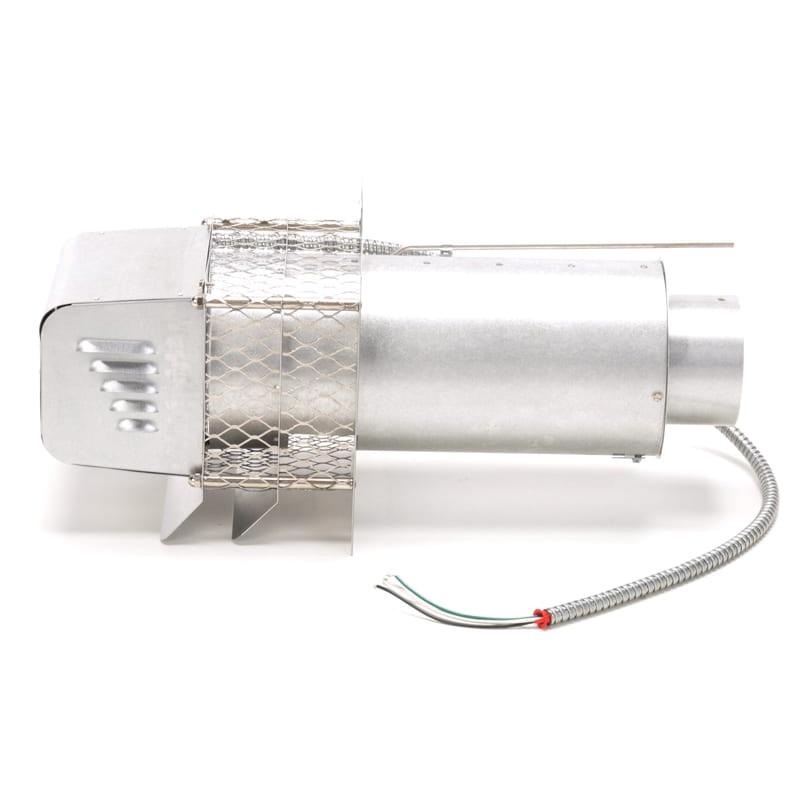

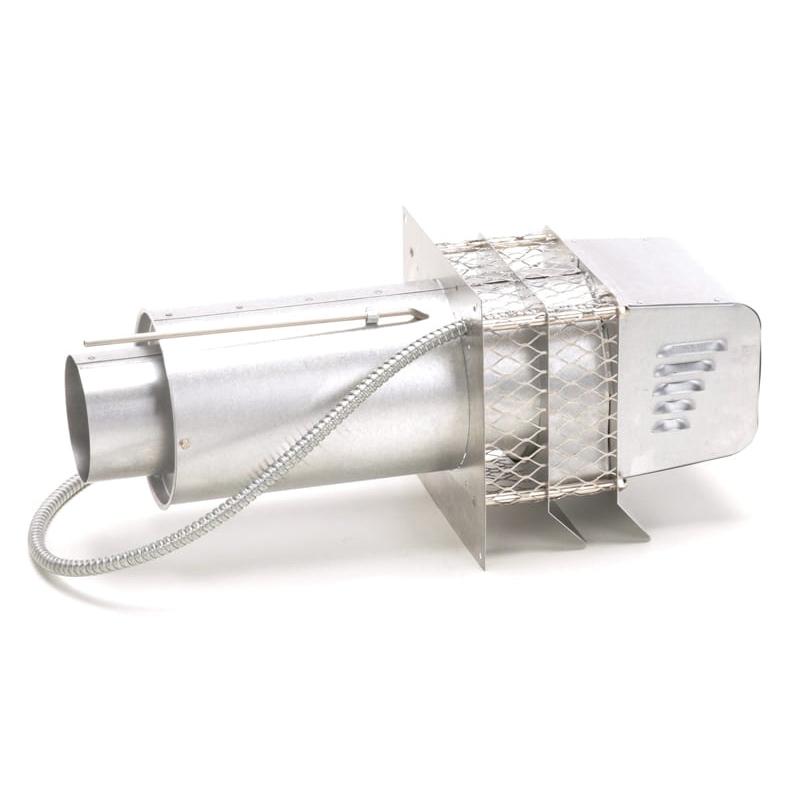

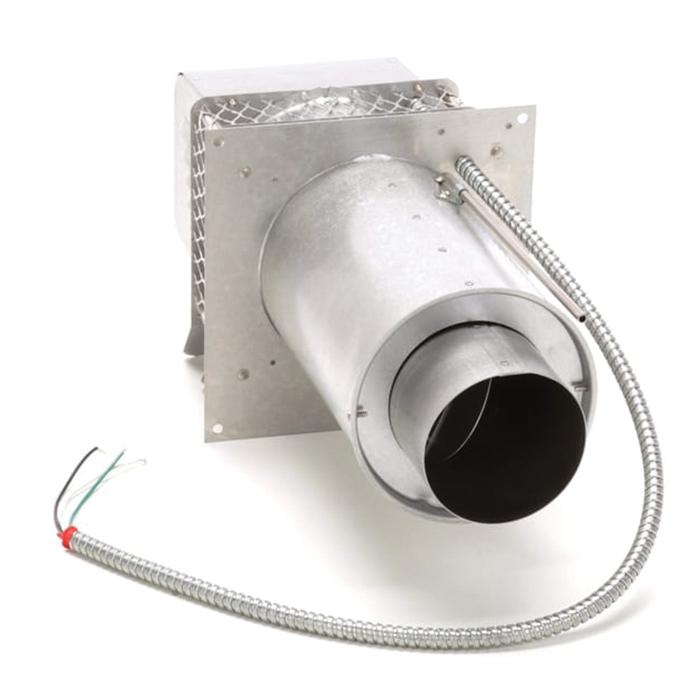

Field Controls 46130002 Furnace Power Vent, 9.18 in OAW, 7.62 in OAH, 115 V, 0.6 A, 40 W, Stainless Steel
- Manufacturer: Field Controls, LLC
- Brand Name: Field Controls
- Part#: FIESWG3
- MPN: 46130002
- UPC: 907471770046
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
The SWG combines the motor, blower, and vent hood in one complete, easy-to-install unit. The SWG mounts on the outside of the building and pulls the combustion gases from the appliance through the outside wall utilizing 100% negative pressure. The SWG must be sized to match the appliance or appliances input firing rate. Most firing rates are published in the manufacturer's installation manual. The SWG and ComboVent must be installed with a CK Control Kit to ensure proper listing and safe, efficient venting.
Field Controls Furnace Power Vent, 17.56 in L Overall, 9.18 in W Overall, 7.62 in H Overall, AC Power Source, Power Supply: 115 V, 0.6 A, 40 W, Stainless Steel
| Material | : | Stainless Steel |
| Overall Height | : | 7.62 in |
| Overall Length | : | 17.56 in |
| Overall Width | : | 9.18 in |
| Power Source | : | AC |
| Power Supply | : | 115 V, 0.6 A, 40 W |
- Telescoping stainless steel body
- Combustion air connection included
- Provides fresh air directly to burner
- Coupler rotates 360 deg for easy installation with CAS boot
- Two-piece backing plate
- Can be mounted at any point during installation
