Duro Dyne® 30361 KV Bracket Assembly With CL12-WC3 Captive Cable Lock, Zinc-Plated, Steel

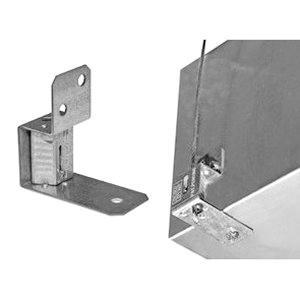

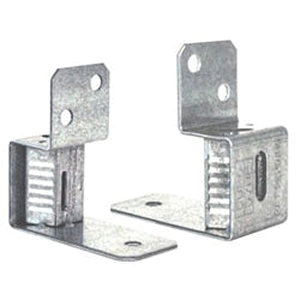

The KV12 Bracket Assembly enhances the Dyna-Tite suspension system by the addition of an integral bracket, which fastens the cable lock to the duct with sheet metal screws. once the KV assembly bracket is attached to the duct, the wire rope "drop" is passed into the entry hole at the top of the bracket, through the cable lock, and out the exit hole at the bottom. The locking teeth inside the cable lock engage the wire rope and secure the ductwork in place. The KV12 Bracket Assembly and the CL12-WC3 have a working load limit of 150 lbs.

Duro Dyne® KV Bracket Assembly, 150 lb Weight, Steel, Zinc-Plated, For Use With: WC3-CL12 Wire Rope

• The KV Bracket must be hung at a 90 degree angle to the suspension point

• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Duro_Dyne_30361_Catalog.pdf
• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Duro_Dyne_30361_Specification_Sheet.pdf
• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Duro_Dyne_30361_Catalog.pdf
