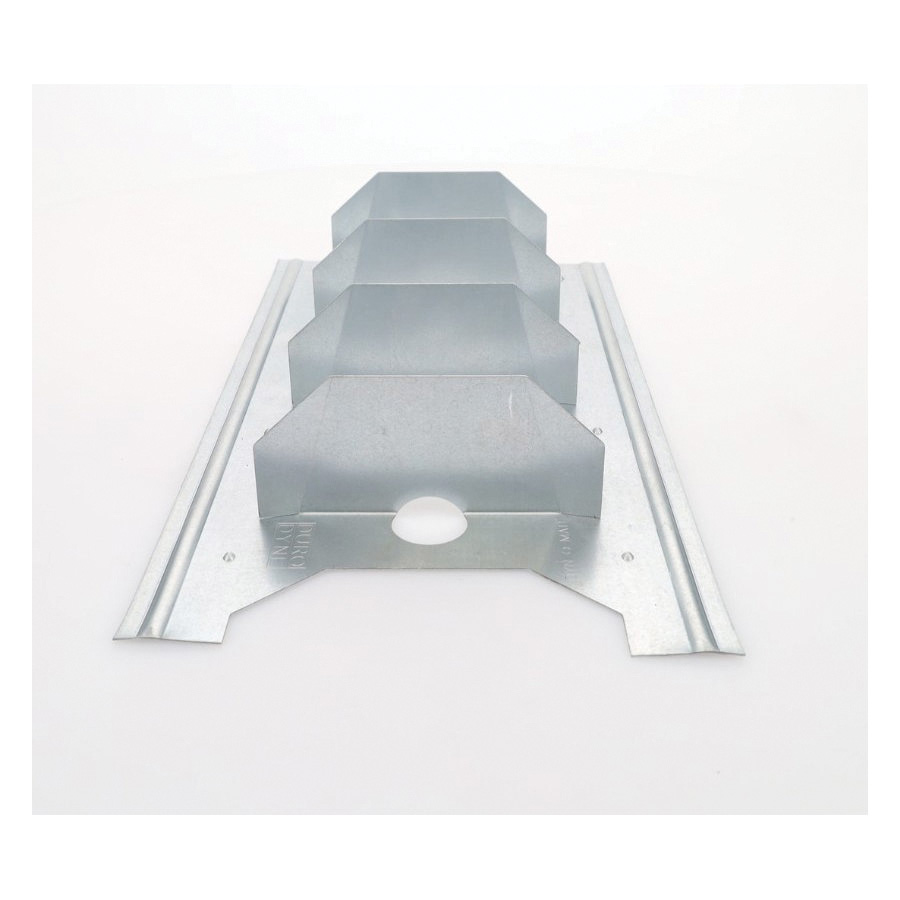

Duro Dyne® HTV4-2410 013207 Hollow Turning Vane, 4 in, Steel, Galvanized
- Manufacturer: NSi Industries
- Brand Name: Duro Dyne®
- Part#: DUR424VAN
- MPN: 013207
- UPC: 797582054070
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
Dyn-O-Mate hollow turning vane and rail is double wall strength. It is designed to redirect the air through elbows and tees in the ductwork without significant loss of air pressure. Assembled vane and rail minimizes turbulence in the ductwork. Duro dyne rail has self aligning tabs for easy vane installation. Dyn-o-mate vane has reinforcing dimples for added stability.
Duro Dyne® Hollow Turning Vane, Model: HTV4-2410, 4 in, 24 ga Gauge, Steel, Finish: Galvanized, 100 ft L
| Correct Item Group | : | Other Ductwork |
| Dimensions | : | 100 ft L |
| Finish | : | Galvanized |
| Gauge | : | 24 ga |
| Material | : | Steel |
| Model | : | HTV4-2410 |
| Size | : | 4 in |
- Hollow turning vane and vane rail are designed to redirect the air through elbows and tees in the ductwork without significant loss of air pressure
- Assembled vane and rail minimizes turbulence in the ductwork
- Duro rail has self-aligning tabs for easy vane installation
