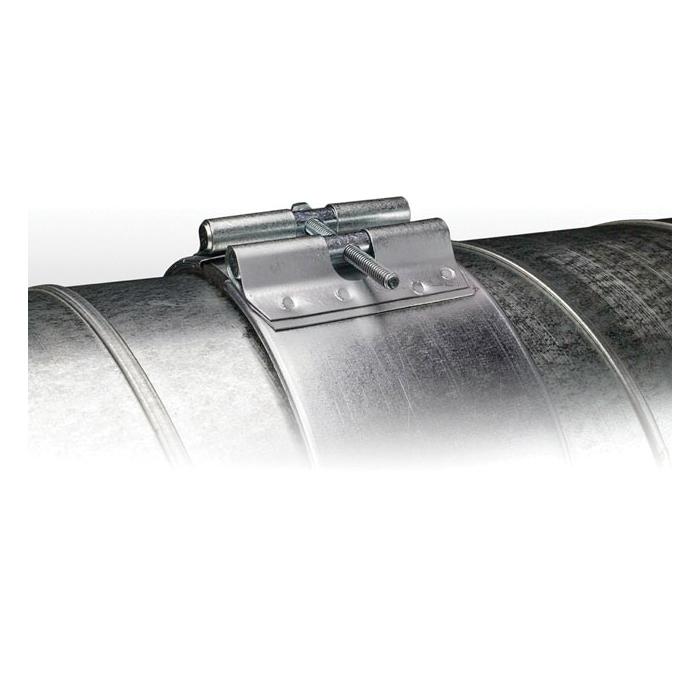

DUCTMATE® Quick-Sleeve™ QS15GA Unique Duct Connector, 15 in Nominal, Round Vent Duct, 1-Bolt, Metal, Galvanized, 24 ga
- Manufacturer: DMI Companies
- Brand Name: DUCTMATE®
- Part#: DUCQS15GA
- MPN: QS15GA
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
Quick-Sleeve™ is a band clamp connection available with a single-bolt connection for 3 to 18 in Dia ducts and a double bolt connection for 4 to 18 in Dia ducts.
DUCTMATE® Quick-Sleeve™ Unique Duct Connector, 15 in Nominal, Round Vent Duct, 1-Bolt Connection, 24 ga Gauge, Metal, Finish: Galvanized, 15 in Diameter, 3-1/2 in Length
| Connection Type | : | 1-Bolt |
| Diameter | : | 15 in |
| Finish | : | Galvanized |
| Gauge | : | 24 ga |
| Length | : | 3-1/2 in |
| Material | : | Metal |
| Nominal Size | : | 15 in |
| Vent Duct Shape | : | Round |
- Provides a simple, leak-free connection for round ducts used in air conditioning, ventilation and dust collection systems
- Only one-bolt to tighten to complete the connection
- Virtually no leakage
- No end preparation of ductwork required
- For plain or spiral round ductwork
- No protrusion into the airstream makes it the ideal connector for ducts carrying dust and more
- Ducts can be disassembled and reassembled
