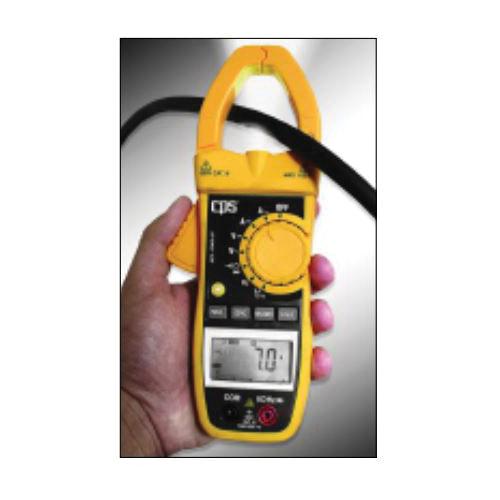

CPS® AC650 CPSAC650
  1. pin-int

CPS® AC650 True RMS Digital Clamp-On Meter, 750/1000 V, 1000 A, 40 MOhm, 40 Hz to 100 kHz, LCD Display

  • Manufacturer: CPS Products
  • Brand Name: CPS®
  • Part#: CPSAC650
  • MPN: AC650
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at All Branches

CPS® True RMS Digital Clamp-On Meter, 750/1000 V, 1000 A, 40 MOhm, 40 Hz to 100 kHz, LCD, +/-3 % Accuracy, +/-1 %, +/-1.2 % Accuracy, Safety Rating: CAT III 600 V, +/-3 % DC Current Accuracy, +/-2 % Accuracy, +/-0.1 % Frequency Accuracy, 86 mm L x 225 mm W x 33 mm H, Additional Information: 42 mm Clamp Size, (3) 1.5V AAA Batteries

AC Current Accuracy      :      +/-3 %
Additional Information      :      42 mm Clamp Size, (3) 1.5V AAA Batteries
Amperage Rating      :      1000 A
DC Current Accuracy      :      +/-3 %
Dimensions      :      86 mm L x 225 mm W x 33 mm H
Display Type      :      LCD
Frequency Accuracy      :      +/-0.1 %
Frequency Rating      :      40 Hz to 100 kHz
Resistance Accuracy      :      +/-2 %
Resistance      :      40 MOhm
Safety Rating      :      CAT III 600 V
Voltage Accuracy      :      +/-1 %, +/-1.2 %
Voltage Rating      :      750/1000 V
  • Four-digit large character LCD display
  • Versatile for testing AC/DC voltage, AC/DC current, resistance and frequency
  • True RMS AC measurement
  • Data hold
  • Max/min value measurement
  • Clamp light and LCD backlight
  • Auto zero key for DCA measurement
  • Auto/manual range, auto power off
  • Secondary injection molded case, safety as per IEC1010 CAT III® 600V
  • Audible continuity and diode test
