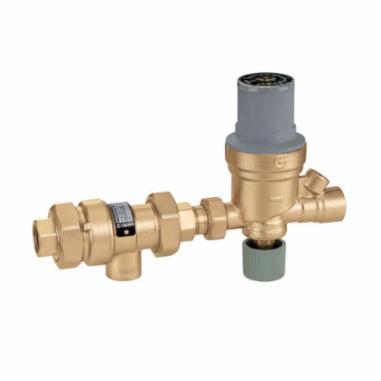

Caleffi AutoFill™ 573 Series 573006A Automatic Filling Valve With Backflow Preventer, 1/2 in, Press, 175 psi, Brass
- Manufacturer: Caleffi
- Brand Name: Caleffi
- Part#: CAL573006A
- MPN: 573006A
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
The automatic filling valve is a device consisting of a pressure reducing valve with compensating seat, visual system pressure setting indicator, an inlet filter, anti-scale internal parts, a shut-off valve (round knob on bottom) and a check valve. It is installed on the water inlet piping in sealed heating systems and its main function is to maintain the pressure of the system at a set value, automatically filling up with water as required. The valve is pre-adjustable, meaning it can be set to the desired pressure value before the system charging phase. After installation, during the filling or topping-off phase, the water feed will stop when the set pressure is reached. This valve fills 50% faster than other valves. There are no levers to flip or valve to close. Pre-assembled with the 573 series backflow preventer, the AutoFill™ combo features an atmospheric vent which is designed to protect drinking water systems from return flow, caused by back-siphoning or backpressure, of contaminated fluids. The 573 series has been specifically certified to standards csa B64.3 and ASSE 1012.
Caleffi AutoFill™ Automatic Filling Valve With Backflow Preventer, 573 Series, 1/2 in Nominal, Press Connection, 175 psi, 0 to 60 psi Pressure Gauge Scale, Brass, #35 Filter Mesh, 150 deg F, 11-1/8 in L
| Connection Type | : | Press |
| Dimensions | : | 11-1/8 in L |
| Filter Mesh Size | : | #35 |
| Material | : | Brass |
| Nominal Size | : | 1/2 in |
| Pressure Gauge Scale | : | 0 to 60 psi |
| Pressure Rating | : | 175 psi |
| Series | : | 573 Series |
| Temperature Rating | : | 150 deg F |
- Pre-adjustable automatic filling valve with backflow preventer
- Brass body
