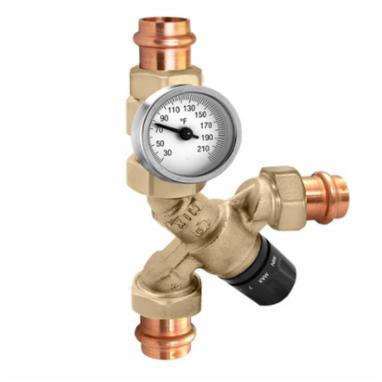

Caleffi 520 Series 520516A Mixing Valve With Temperature Gauge, 3/4 in, Press, 0.5 gpm, 75 psi
- Manufacturer: Caleffi
- Brand Name: Caleffi
- Part#: CAL520516A
- MPN: 520516A
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
The Caleffi AngleMix™ is the industry's only thermostatic mixing valve with an angle-style body. This configuration minimizes the use of elbow fittings for reduced installation time and cost. The AngleMix™ delivers precise mixed temperature stability as low as 0.5 gpm for today's high efficiency fixtures. In domestic recirculation systems, the tight inlet close-off performance prevents temperature creep without the need for return water balancing valves.
Caleffi Mixing Valve With Temperature Gauge, 520 Series, 3/4 in Nominal, Press Connection, Number of Ports/Ways: 3-Ways, 0.5 gpm Flow Rate, 75 psi, 2 Cv Flow Coefficient (Cv), Knob Operator, ABS Handle, Stainless Steel Trim, PSU Seat, EPDM Seal, Brass, +/-3 deg F Gauge Accuracy, Water Media, 30 to 210 deg F Gauge Scale, Thermostatic Valve, Contains Lead, 195 deg F, 8 in H
| Connection Type | : | Press |
| Dimensions | : | 8 in H |
| Flow Coefficient (Cv) | : | 2 Cv |
| Flow Rate | : | 0.5 gpm |
| Gauge Accuracy | : | +/-3 deg F |
| Gauge Scale | : | 30 to 210 deg F |
| Handle Material | : | ABS |
| Lead-Free/Contains Lead | : | Contains Lead |
| Material | : | Brass |
| Media | : | Water |
| Nominal Size | : | 3/4 in |
| Number of Ports/Ways | : | 3-Ways |
| Operator Type | : | Knob |
| Pressure Rating | : | 75 psi |
| Seal Material | : | EPDM |
| Seat Material | : | PSU |
| Series | : | 520 Series |
| Temperature Rating | : | 195 deg F |
| Trim Material | : | Stainless Steel |
| Valve Type | : | Thermostatic |
- Reduces installation labor and materials because the hot inlet port is in line with mixed outlet port, eliminating a piping elbow as required using standard mixing valves
- 0.5 gpm minimum flow for stable control for today's high efficiency fixtures
- Eliminates "temperature creep" in domestic water recirculation systems
- Inhibits scaling on internal sliding surfaces, assuring stable temperature control and long life
- Local temperature indication, convenient drywell design
- Fine threads for smooth knob adjustment and accurate setting
