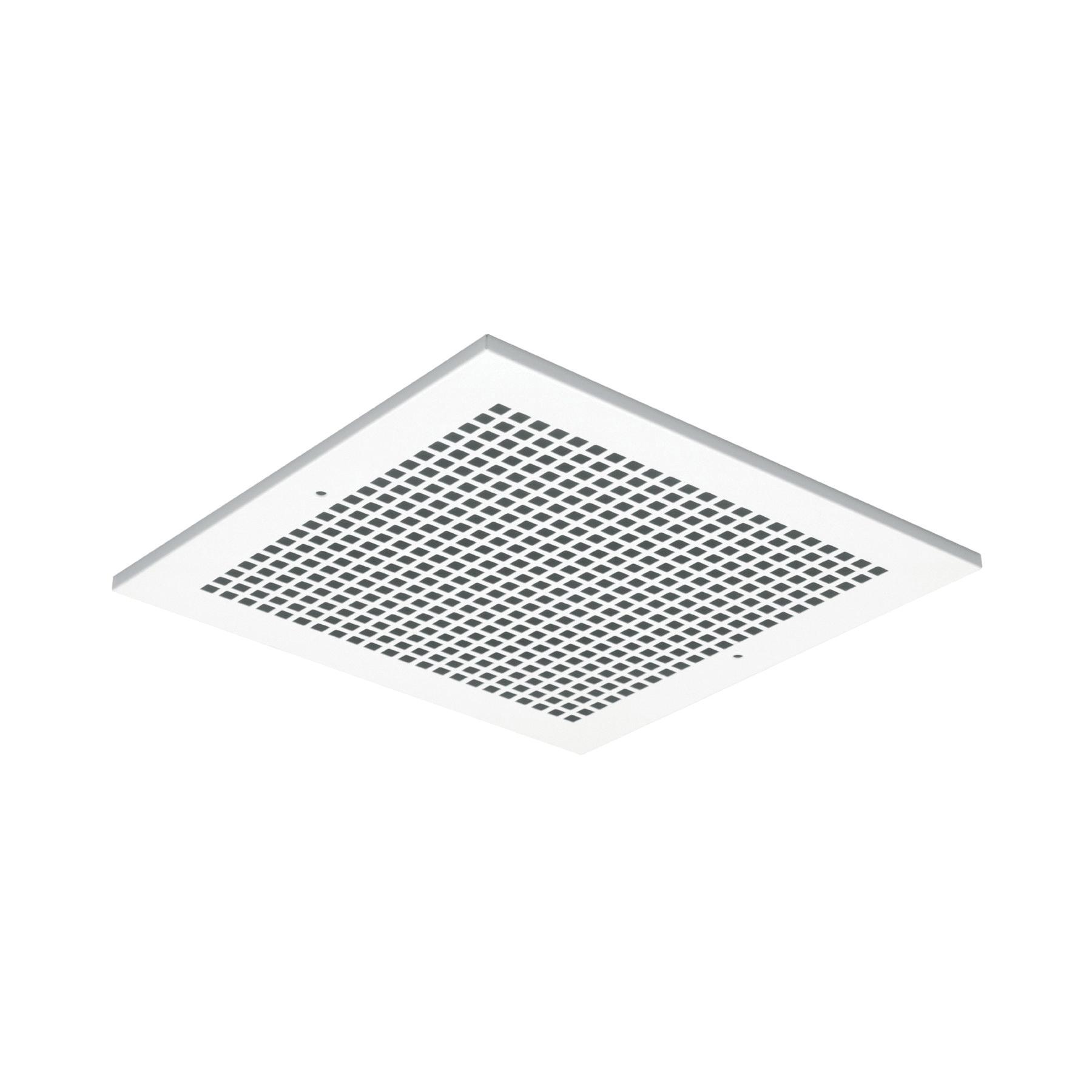

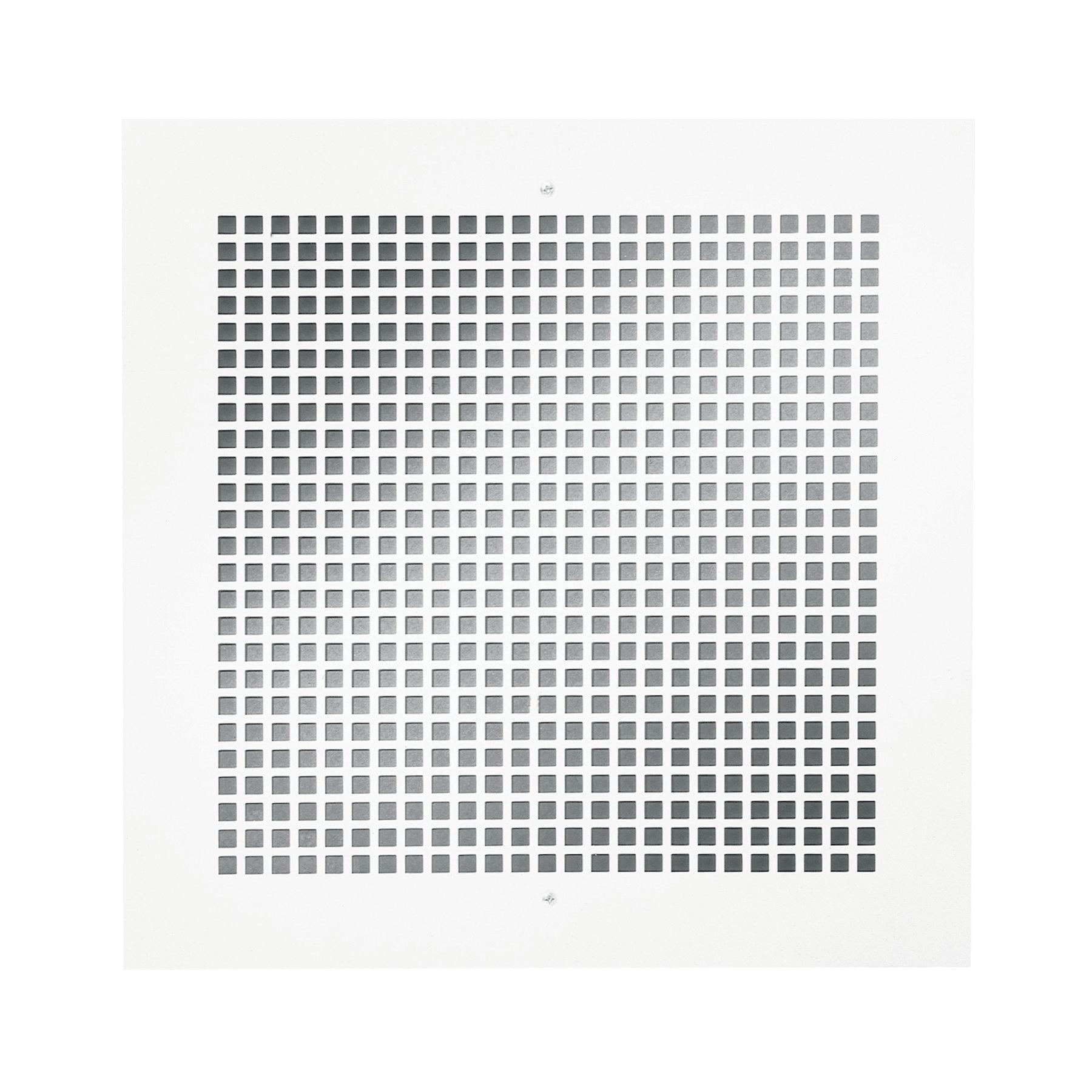

Broan-NuTone® Losone Select L200MG Ventilator, 120 VAC, 1.8 A, 20 ga Steel, Galvanized, Painted Enamel
- Manufacturer: Madison Air
- Brand Name: Broan-NuTone®
- Part#: BROL200MG
- MPN: L200MG
- UPC: 026715125166
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
Broan-NuTone® Losone Select Ventilator, 120 VAC, 1.8 A, 60 Hz, 127 W, 20 ga Steel, Galvanized, Painted Enamel, White, Ceiling Mount, 12-1/4 in Length, 12-1/4 in Width, 11-3/4 in Height, 215 cfm Horizontal, 209 cfm Vertical, 8 in Duct, 715 rev/min Horizontal, 713 rev/min Vertical Speed Rating
| Amperage Rating | : | 1.8 A |
| CFM Rating | : | 215 cfm Horizontal, 209 cfm Vertical |
| Color | : | White |
| Duct Size | : | 8 in |
| Finish | : | Galvanized, Painted Enamel |
| Frequency Rating | : | 60 Hz |
| Height | : | 11-3/4 in |
| Length | : | 12-1/4 in |
| Material | : | 20 ga Steel |
| Mounting Type | : | Ceiling |
| Power Rating | : | 127 W |
| Speed Rating | : | 715 rev/min Horizontal, 713 rev/min Vertical |
| Voltage Rating | : | 120 VAC |
| Width | : | 12-1/4 in |
- Losone Select Ventilator
- Conceals interior
- Low profile styling blends with any decor
- Low rpm for quiet operation
- Resilient anti-vibration-mounts
- Dynamically balanced, polymeric, centrifugal blower wheel for quiet, efficient performance
- Permanently lubricated, thermally protected motor
- Designed for continuous operation
- Rugged, 20 ga galvanized steel
- 1/2 in acoustic insulation inside housing
- May be installed in ceiling or wall (size permitting)
- 8-position-mounting brackets for easy installation and greater adaptability to various-mounting requirements
- Automatic backdraft damper located within duct connector
- Factory shipped in horizontal discharge position easily converted to vertical discharge
