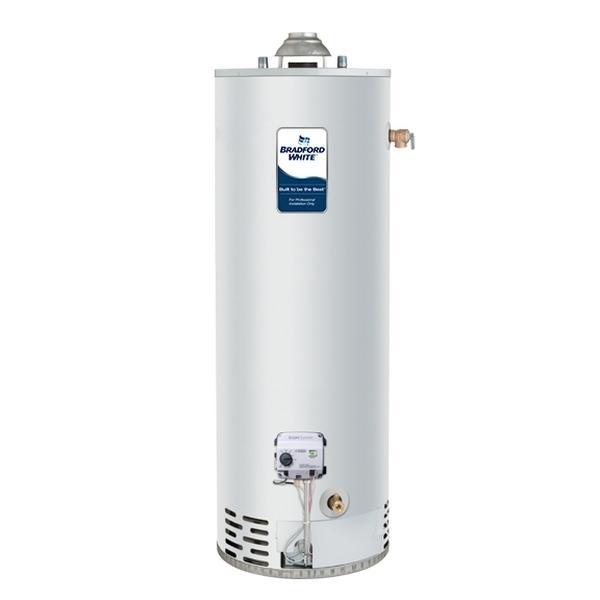

Bradford White® RG240S6N Gas Water Heater, 40 gal, 40000 Btu/hr, 11.7 kW, Natural Gas

Bradford White® Gas Water Heater, 40 gal Capacity, 40000 Btu/hr, 11.7 kW, 69 gal First Hour Delivery, 0.58 Energy Factor, 43 gph Recovery Rate, 3 in, 4 in Vent, Atmospheric Vent, NPT Connection, 150 psi, Recovery Efficiency: 80 %, Floor Mounting, Natural Gas Fuel, Piezo Ignition, 160 deg F, 22 in Dia x 51-9/16 in H x 25-1/2 in D, Domestic/Import: Domestic

• Intelligent gas control with proven millivolt powered technology
• Proprietary algorithms provide enhanced first hour delivery ratings and tighter temperature differentials
• Microprocessor constantly monitors and controls burner operation to maintain consistent and accurate water temperature levels
• An exclusive green LED light prompts the installer during start-up and provides ten different diagnostic codes to assist in troubleshooting
• Flashing green LED provides positive indication that pilot is on
• High-strength advanced polymer composite thermowell provides isolation between electric temperature sensor and surrounding water, no need to drain the tank when removing gas valve
• Advanced ScreenLok® technology flame arrestor is designed to prevent ignition of flammable vapors outside of the water heater
• Proven and reliable bi-metallic switch prevents burner and pilot operation in case of ongoing flammable vapors burning inside of the combustion chamber or restricted air flow
• Maintenance-free, no regular cleaning of air inlet openings or flame arrestor is required under normal conditions
• Sight window offers a view into the combustion chamber to observe the operation of the pilot and burner
• Factory installed Hydrojet® total performance system
• Tanks are lined with an exclusively engineered enamel formula that provides superior tank protection from the highly corrosive effects of hot water
• Non-CFC foam insulation covers the sides and top of tank, reducing the amount of heat loss
• Pedestal base, factory installed heat traps
• Protective magnesium anode rods
• 3 x 4 in snaplock draft diverter
• Durable tamper-proof design low restriction brass drain valve
