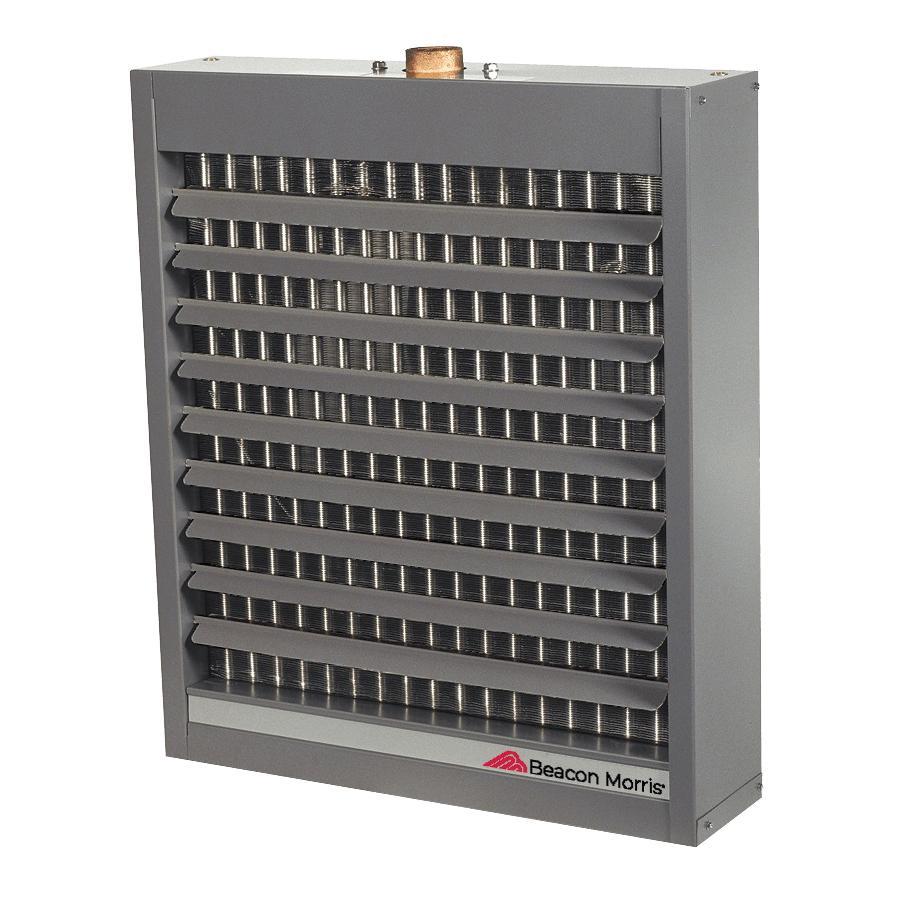

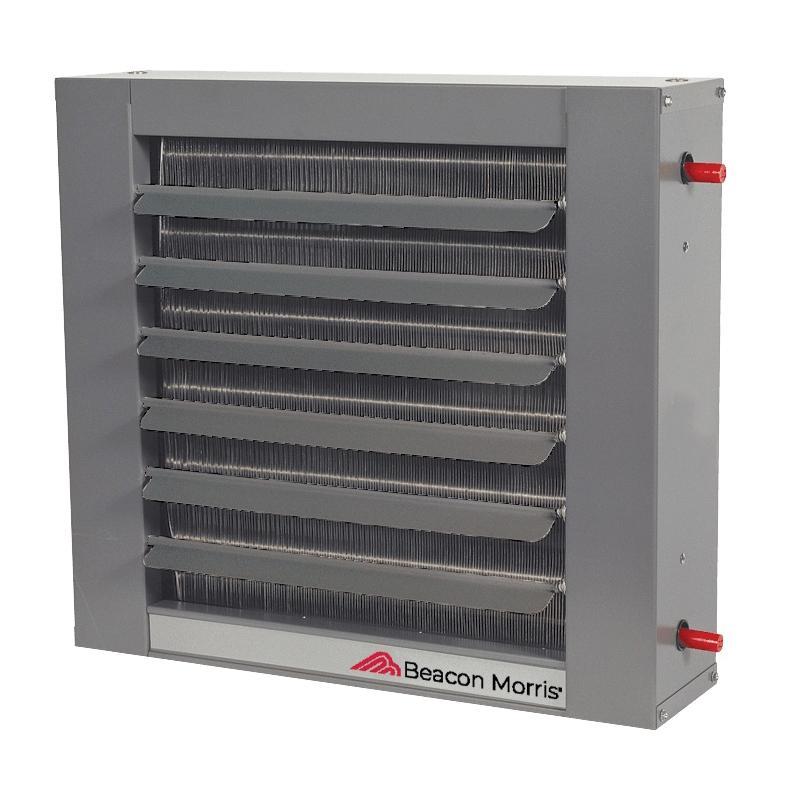

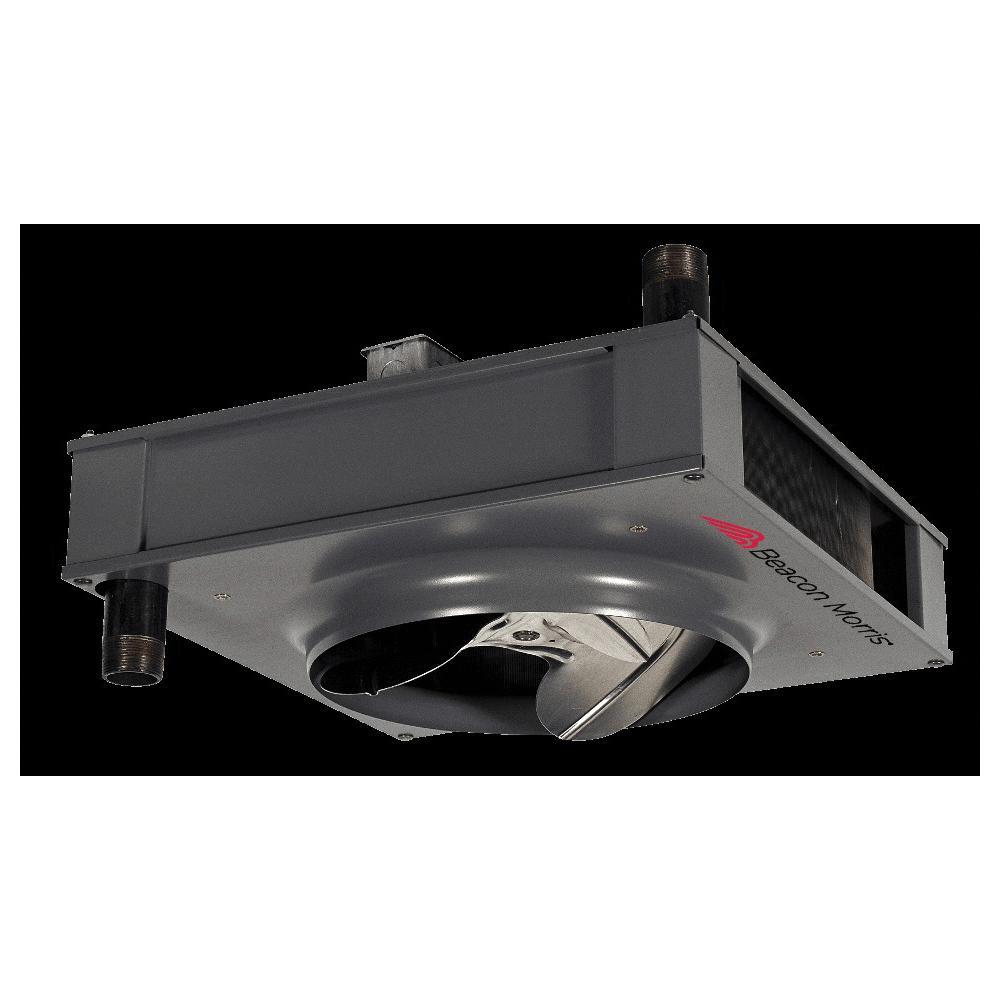

Beacon Morris® HB-18 Horizontal and Vertical Hydronic Unit Heater, 16200 to 18000 Btu/hr BTU, 115 V, 1 ph -Phase
- Manufacturer: Beacon Morris
- Brand Name: Beacon Morris®
- Part#: BEAHB18
- MPN: HB-18
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
HB Series horizontal unit heaters are ideal for hot water installations. A wide range of outputs and airflows allows virtually unlimited flexibility in job design. Beacon Morris® horizontal unit heaters are available in both serpentine and header-type units. Serpentine units offer outputs from 8030 to 35900 Btu and are ideal for hot water installations with limited clearances. Header-type horizontal units range from 18000 to 360000 and can operate with either hot water or steam. Both units are furnished with totally enclosed motors as standard equipment, explosion-proof motors are optional.
Beacon Morris® Horizontal and Vertical Hydronic Unit Heater, 16200 to 18000 Btu/hr, 115 V, 0.8 A, 60 Hz, 1 ph Phase, 1350 to 1550 rpm Motor, 18 Lpm Water Flow Rate, 330 to 395 cfm Air Flow, Frame Mounting, Die-Formed Steel Housing, 14-5/8 in Overall Length, 15 in Overall Height, Copper Tube, 3/8 in Tube, Aluminum Fin, Additional Information: HB Series, Steam and Hot Water Coil, 4 Louvers
| Additional Information | : | HB Series, Steam and Hot Water Coil, 4 Louvers |
| Air Flow Rate | : | 330 to 395 cfm |
| Amperage Rating | : | 0.8 A |
| BTU Rating | : | 16200 to 18000 Btu/hr |
| Fin Material | : | Aluminum |
| Frequency Rating | : | 60 Hz |
| Housing Material | : | Die-Formed Steel |
| Motor Speed | : | 1350 to 1550 rpm |
| Mounting Type | : | Frame |
| Overall Height | : | 15 in |
| Overall Length | : | 14-5/8 in |
| Phase | : | 1 ph |
| Tube Material | : | Copper |
| Tube Size | : | 3/8 in |
| Voltage Rating | : | 115 V |
| Water Flow Rate | : | 18 Lpm |
- Totally enclosed motors with thermal overload
- Static and dynamically balanced fans
- Versatile hanging system
- Horizontal louvers standard
- Thermostats feature off-auto and auto-fan-off
- Copper/aluminum coils
