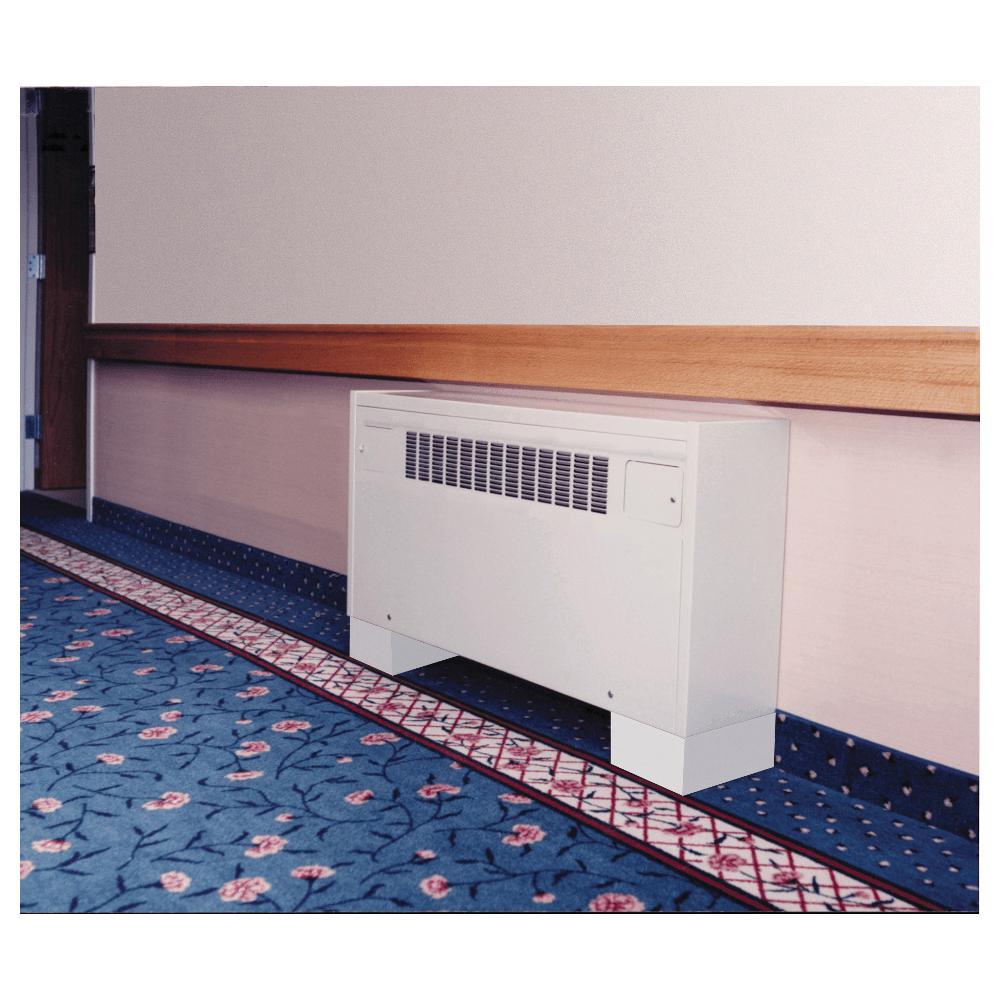

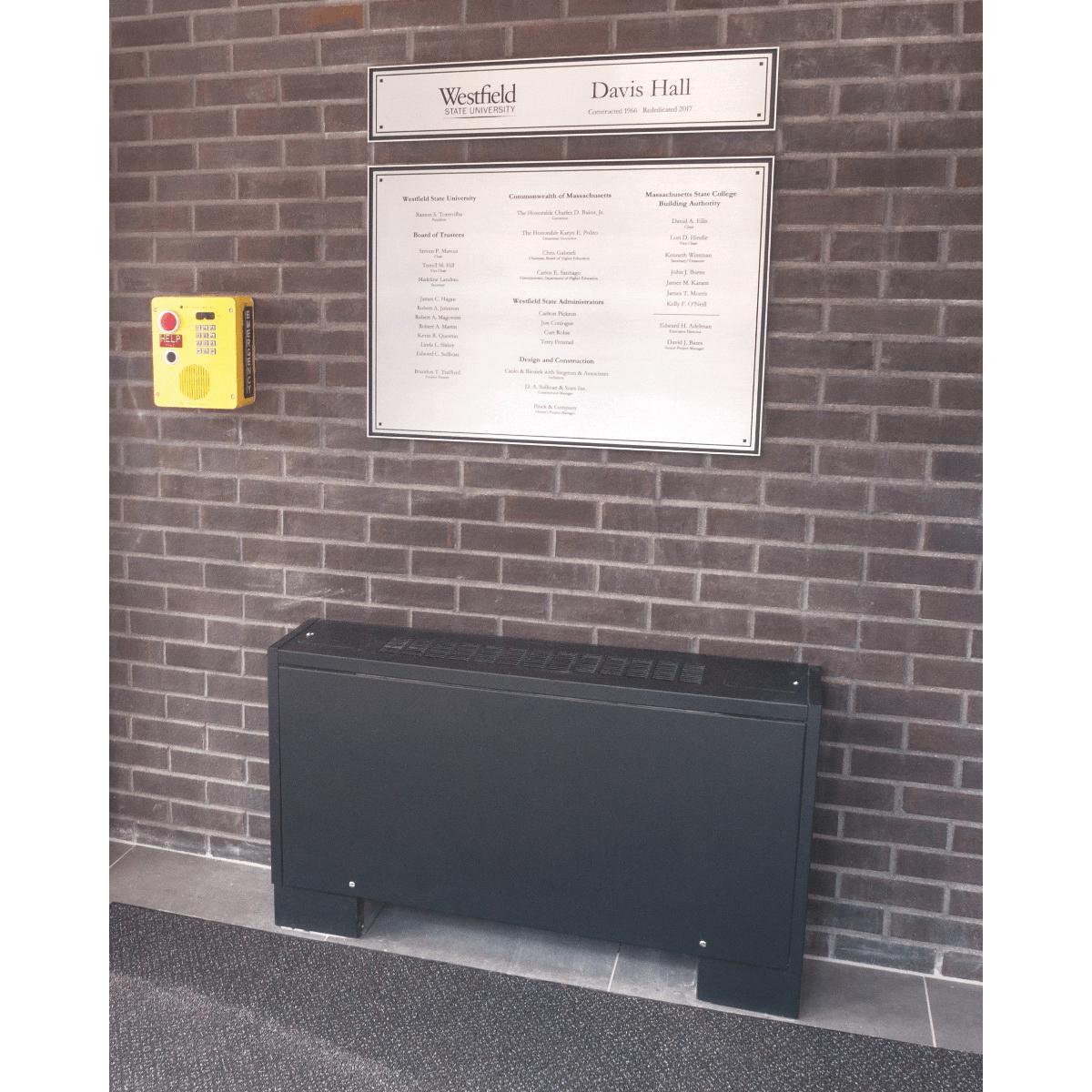

Beacon Morris® C C-1180-02 Cabinet Unit Heater, 16.4 MBtu/hr BTU, 115 V, 1 ph -Phase, 1/15 hp Motor, 185 to 230 cfm
- Manufacturer: Beacon Morris
- Brand Name: Beacon Morris®
- Part#: BEAC118002
- MPN: C-1180-02
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
Beacon Morris® brings years of manufacturing and engineering experience to its cabinet unit heater offering. Cabinet unit heaters are available in several configurations allowing application flexibility.
Beacon Morris® Cabinet Unit Heater, Model: C, 16.4 MBtu/hr, 115 V, 60 Hz, 1 ph Phase, 1/15 hp Motor HP, 875 to 1050 rpm Motor, 1.64 gpm Water Flow Rate, 185 to 230 cfm Air Flow, Variable Control, Ceiling Mounting, Cold Rolled Steel Housing, 35 in Overall Length, 9-1/2 in Overall Width, 25 in Overall Height, 12 Fins
| Air Flow Rate | : | 185 to 230 cfm |
| BTU Rating | : | 16.4 MBtu/hr |
| Control Type | : | Variable |
| Frequency Rating | : | 60 Hz |
| Housing Material | : | Cold Rolled Steel |
| Model | : | C |
| Motor HP Rating | : | 1/15 hp |
| Motor Speed | : | 875 to 1050 rpm |
| Mounting Type | : | Ceiling |
| Number of Fins | : | 12 |
| Overall Height | : | 25 in |
| Overall Length | : | 35 in |
| Overall Width | : | 9-1/2 in |
| Phase | : | 1 ph |
| Voltage Rating | : | 115 V |
| Water Flow Rate | : | 1.64 gpm |
- Adjustable wall seals
- Copper aluminum coil for steam or hot water
- Whisper quiet blowers
- Baked enamel powercoat finish
- 16 ga insulated front panel
- Permanent washable filters
- Permanent split capacitor motors
- Steam coil tested to 250 psi
- Ease of service access areas
Submittal
