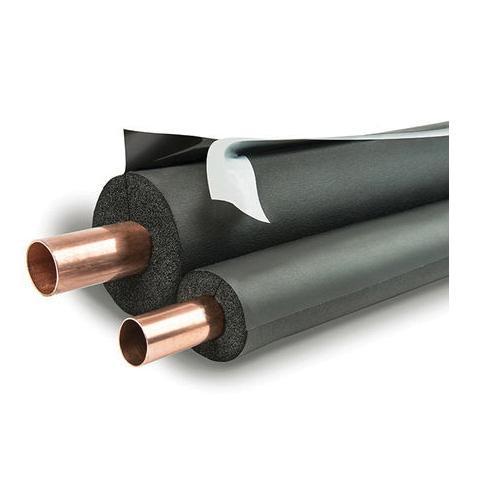

armacell® AP ArmaFlex® IPBST07834 Pipe Insulation With Lap Seal, For Pipe Size: 3/4 in, For Pipe Type: Copper, 6 ft L

  • Manufacturer: Armacell
  • Brand Name: armacell®
  • Part#: ARM7834BLS
  • MPN: IPBST07834
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at All Branches

Armacell® answers the demand for easy to install ArmaFlex® black LapSeal™ in a wide range of popular sizes and a secure lap seal closure system. Installers who already like the quick application of self-seal and lap seal ArmaFlex® will appreciate the enhancements to our newest pipe insulation innovation. Features include a wide lap seal closure system, with an easy to release liner tab. For added security, the low-profile lap seal ensures the longitudinal seam stays closed and looks neat. It's the ideal solution for speeding up install times or making hard to reach installation areas easier to accommodate.

armacell® AP ArmaFlex® Pipe Insulation, For Pipe Size: 3/4 in, For Pipe Type: Copper, 7/8 x 3/4 in Nominal, 7/8 in Inside Dia, 3/4 in Wall Thickness, Self-Seal Facing, Closed Cell Construction, R-Value: R5.4, 0.235 to 0.268 Btu-in/hr-sq-ft-deg F, -297 to 220 deg F, Copper Connection Type, Elastomeric Foam, Black, 6 ft Length

Color      :      Black
Connection Type      :      Copper
Construction      :      Closed Cell
Facing Type      :      Self-Seal
For Pipe Size      :      3/4 in
For Pipe Type      :      Copper
Inside Diameter      :      7/8 in
Length      :      6 ft
Material      :      Elastomeric Foam
Nominal Size      :      7/8 x 3/4 in
R-Value      :      R5.4
Temperature Rating      :      -297 to 220 deg F
Thermal Conductivity      :      0.235 to 0.268 Btu-in/hr-sq-ft-deg F
Wall Thickness      :      3/4 in
  • Interior adhesive liner for quicker application
  • Durable, low-profile lap seal with wider release tab, stays closed and looks neat
  • Easy to install - an excellent choice for retrofit applications
  • ASTM E 84 25/50 rated up to 2 in wall
  • Fiber-free, formaldehyde-free, low voc and non-particulating formulation protects indoor air quality
  • Microban® anti-microbial product protection inhibits the growth of mold and mildew in the insulation
  • Closed cell foam structure prevents moisture wicking and eliminates need for additional vapor retarder
  • Long-lasting, retains thermal integrity over time
