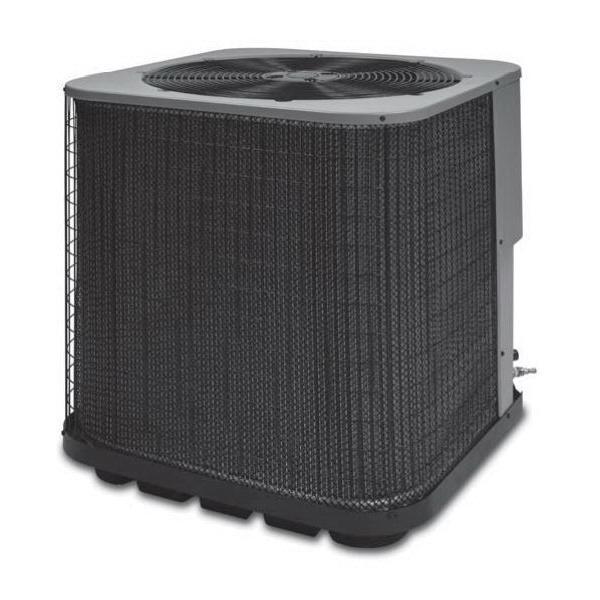

AireForce® WSH3BE4M1SP24K AFWSH3BE4M1SP24K
  1. pin-int

AireForce® WSH3BE Series WSH3BE4M1SP24K High Efficiency Heat Pump, 208/230 V, 15.1 A, 24000 Btu/hr BTU, 1/8 hp, Steel

  • Manufacturer: Aireforce
  • Brand Name: AireForce®
  • Part#: AFWSH3BE4M1SP24K
  • MPN: WSH3BE4M1SP24K
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at All Branches

The WSH3BE Series of heat pumps offers exceptional performance. The unit, when combined with our engineered coils or air handlers, offers a full line of quality, split system heat pump equipment.

AireForce® High Efficiency Heat Pump, WSH3BE Series, 208/230 V, 15.1 A, 1/8 hp, 60 Hz, 1 ph Phase, 24000 Btu/hr, 750 cfm, 12 EER Rating, 14.3 SEER, 7.5 HSPF, Brazed Connection, Scroll Compressor, R-410A Refrigerant, 3/8 in Liquid Line, 3/4 in Suction Line, 25 A Fuse Rating, Tonnage: 2 ton, 69 dB Sound Level, 1 Stages, Steel, Finish: Galvanized/Powder-Coated Paint, 37-1/4 in H x 31-3/4 in W x 31-3/4 in D, Additional Information: PSC Motor

Additional Information      :      PSC Motor
Amperage Rating      :      15.1 A
BTU Rating      :      24000 Btu/hr
CFM Rating      :      750 cfm
Compressor Type      :      Scroll
Connection Type      :      Brazed
Dimensions      :      37-1/4 in H x 31-3/4 in W x 31-3/4 in D
Domestic/Import      :      37-1/4 in H x 31-3/4 in W x 31-3/4 in D
EER Rating      :      12
Finish      :      Galvanized/Powder-Coated Paint
Frequency Rating      :      60 Hz
Fuse Rating      :      25 A
HP Rating      :      1/8 hp
HSPF Rating      :      7.5
Liquid Line Size      :      3/8 in
Material      :      Steel
Number of Stages      :      1
Phase      :      1 ph
Refrigerant Type      :      R-410A
SEER Rating      :      14.3
Series      :      WSH3BE Series
Sound Level      :      69 dB
Suction Line Size      :      3/4 in
Tonnage      :      2 ton
Voltage Rating      :      208/230 V
  • Quality compressor state of the art copeland scroll compressor is standard equipment
  • Designed using galvanized steel units feature a powder-coated paint with a gloss finish that eliminates sharp edges and reduces corrosion, fading, chipping and scratching
  • It passes 950 hr of salt spray per ASTM B117
  • Permanently lubricated motor a heavy-duty PSC motor for long lasting reliability and quiet operation
  • Requires no maintenance and is completely protected from rain and snow
  • Composite base pan absorbs sound and is corrosion-resistant
  • Composite is also stronger and lighter than steel
  • Removable top grille assembly allows ease-of service from the top without disconnecting fan motor leads
  • Swept wing fan blade designed to significantly reduce unwanted noise
  • Protects against abnormally high system pressures
  • Auto-reset feature prevents nuisance service visits
  • Low pressure switch loss of charge protection ensures long compressor life
  • One-piece top/orifice designed for maximum airflow and quiet operation
  • Five-minute restart time delay when the unit shuts down, a five-minute delay keeps the unit from restarting, eliminating the highest cause for compressor failure
  • Easy compressor and control access designed to make servicing easier for the contractor, access panels are provided to all controls and the compressor from the side of the unit
  • All aluminum coils in all models which provides high corrosion resistance
  • Servicer friendly jacket side panels can be easily removed and replaced without removing the top grill
