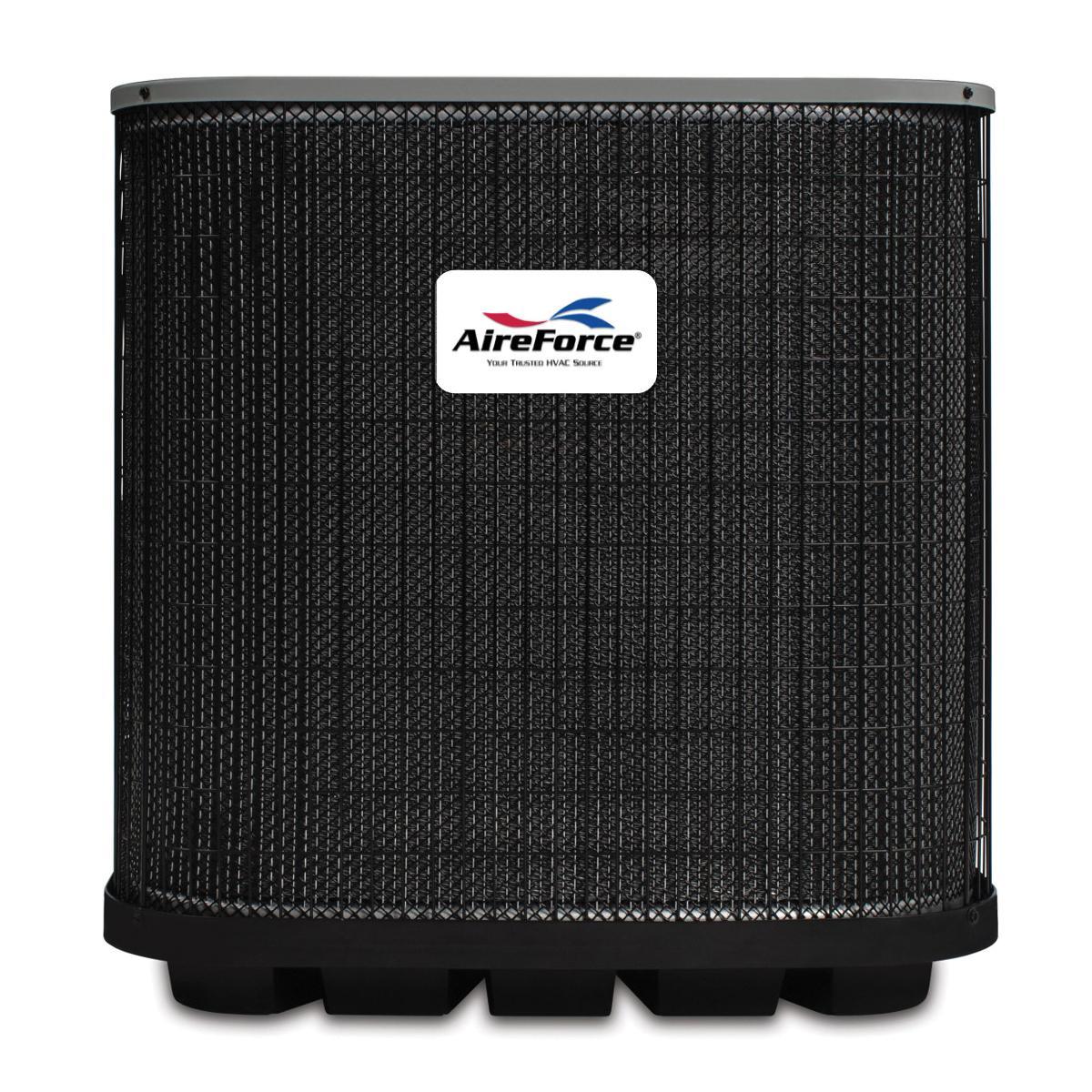

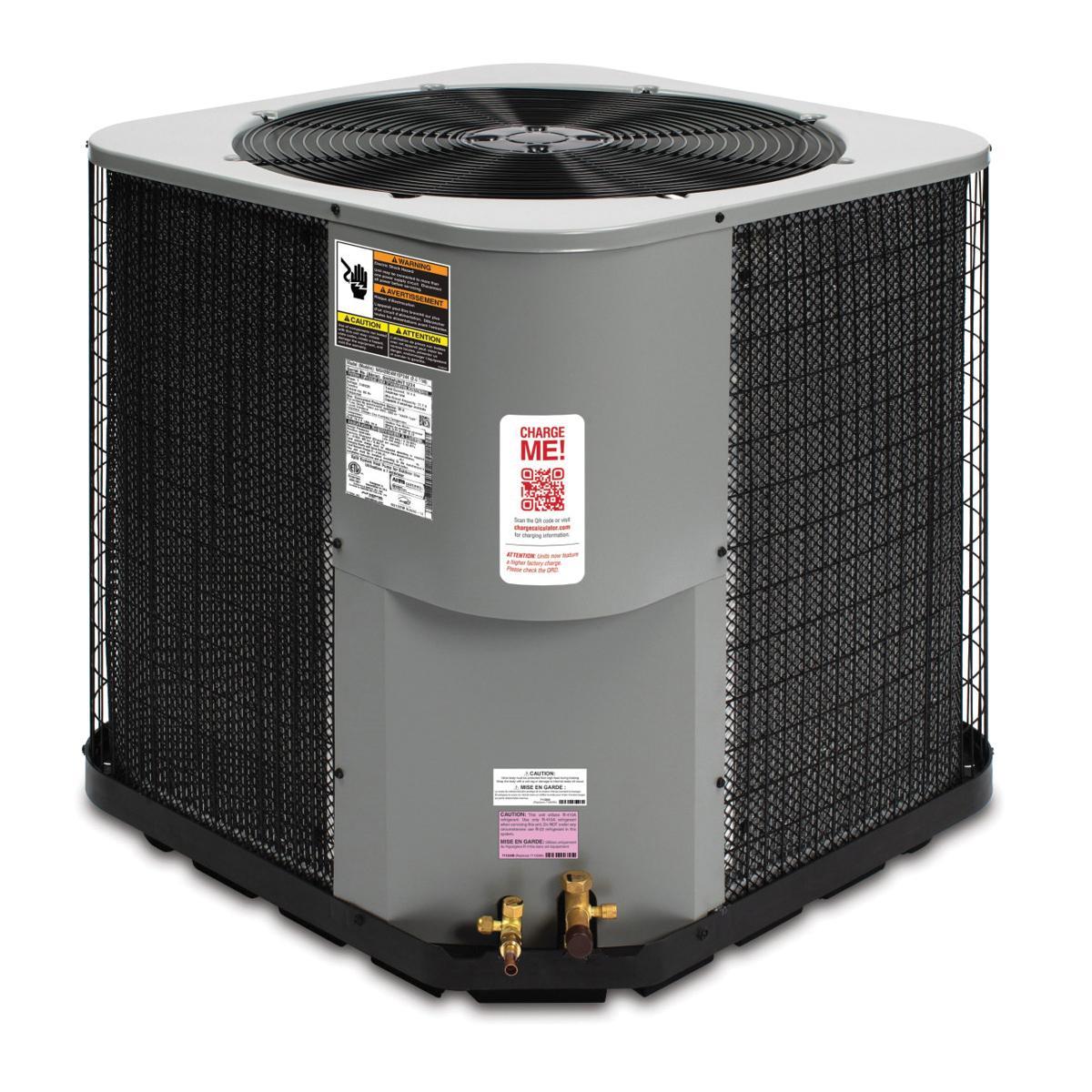

AireForce® WSA3BD Series WSA3BD4M1SN48K High Efficiency Air Conditioner, 208/230 V
- Manufacturer: Aireforce
- Brand Name: AireForce®
- Part#: AFWSA3BD4M1SN48K
- MPN: WSA3BD4M1SN48K
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
Our 13.4 SEER2 air conditioner is a highly efficient cooling system designed to provide reliable and effective cooling for residential or commercial spaces. Our air conditioner utilizes advanced technology to remove heat from the indoor air and expel it outdoors, creating a comfortable indoor environment even during hot summer months. With a rating of 13.4 SEER2, this air conditioner offers excellent energy efficiency, meaning it can effectively cool your space while using less energy compared to lower SEER-rated models.
AireForce® High Efficiency Air Conditioner, WSA3BD Series, 1.5 to 5 ton Nominal Capacity, 46000 Btu/hr Cooling Capacity, 208/230 V, 32.7 A, 1/4 hp, 60 Hz, 1 ph Phase, Scroll Compressor, 1400 cfm, 11 EER Rating, 13.4 SEER, 1 Stages, R-410A Refrigerant, 3/8 in Liquid Line, 7/8 in Suction Line, 79 dB Sound Level, Brazed Connection, 50 A Fuse Rating, PSC Motor, Steel, Finish: Galvanized/Gloss/Powder-Coated, 35.35 in H x 31.75 in W x 31.75 in D
| Amperage Rating | : | 32.7 A |
| CFM Rating | : | 1400 cfm |
| Compressor Type | : | Scroll |
| Connection Type | : | Brazed |
| Cooling Capacity | : | 46000 Btu/hr |
| Dimensions | : | 35.35 in H x 31.75 in W x 31.75 in D |
| EER Rating | : | 11 |
| Finish | : | Galvanized/Gloss/Powder-Coated |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 50 A |
| HP Rating | : | 1/4 hp |
| Liquid Line Size | : | 3/8 in |
| Material | : | Steel |
| Motor Type | : | PSC |
| Nominal Capacity | : | 1.5 to 5 ton |
| Number of Stages | : | 1 |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 13.4 |
| Series | : | WSA3BD Series |
| Sound Level | : | 79 dB |
| Suction Line Size | : | 7/8 in |
| Voltage Rating | : | 208/230 V |
- Quality compressor - state-of-the art copeland scroll compressor is standard equipment
- Designed using galvanized steel - with powder-coated paint and a gloss finish that eliminates sharp edges and reduces scratching
- Permanently lubricated motor - a heavy-duty PSC motor for long-lasting reliability and quiet operation, requires no maintenance and is completely protected from rain and snow
- Removable top grille assembly - allows ease of service from the top without disconnecting fan motor leads
- High pressure switch - protects against abnormally high system pressures, auto-reset feature prevents nuisance service visits
- Liquid line filter drier - included with unit, field installed
- One-piece top/orifice - designed for maximum airflow and quiet operation
- Easy compressor and control access - designed to make servicing easier for the contractor, access panels are provided to all controls and the compressor from the side of the unit
- Composite base pan - absorbs sound and is corrosion-resistant, composite is also stronger and lighter than steel
- Swept wing fan blade - designed to significantly reduce unwanted noise
- All aluminum coils: all aluminum coils in all models which provides high corrosion resistance
- Servicer friendly jacket - side panels can be easily removed and replaced without removing the top grill
Instruction/Installation Manual
