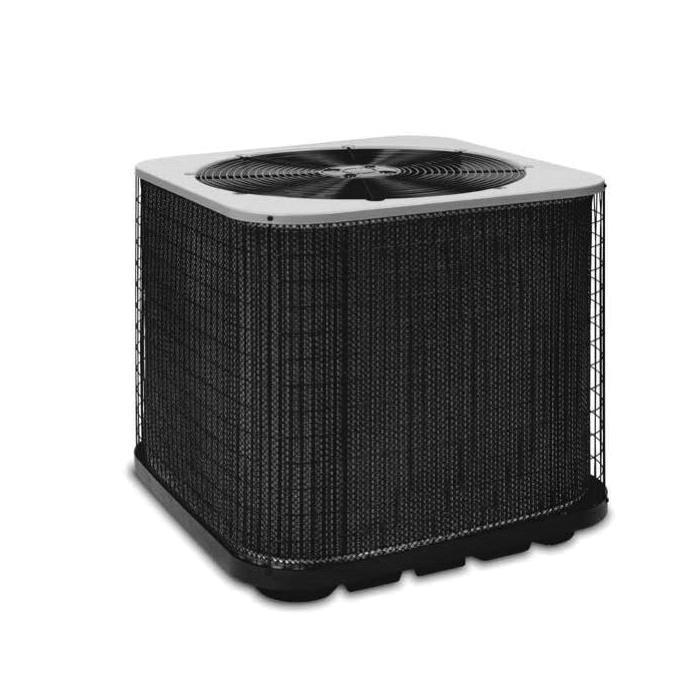

AireForce® WSA2BF Series WSA2BF4M1SN42K Extra High Efficiency Air Conditioner, 208/230 V
- Manufacturer: Aireforce
- Brand Name: AireForce®
- Part#: AFWSA2BF4M1SN42K
- MPN: WSA2BF4M1SN42K
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
The WSA2BF Series air conditioners offers exceptional performance. The unit, when combined with our engineered coils or air handlers, offers a line of quality, 16 SEER split system cooling equipment.
AireForce® Extra High Efficiency Air Conditioner, WSA2BF Series, 2 to 5 ton Nominal Capacity, 40000 Btu/hr Cooling Capacity, 208/230 V, 23.8 A, 1/4 hp, 60 Hz, 1 ph Phase, Scroll Compressor, 1200 cfm, 13 EER Rating, 16 SEER, 1 Stages, R-410A Refrigerant, 3/8 in Liquid Line, 7/8 in Suction Line, 79 dB Sound Level, Brazed Connection, 40 A Fuse Rating, PSC Motor, Steel, Finish: Galvanized/Polyester Urethane-Coated, 45-1/4 in H x 30-3/4 in W x 30-3/4 in D
| Amperage Rating | : | 23.8 A |
| CFM Rating | : | 1200 cfm |
| Compressor Type | : | Scroll |
| Connection Type | : | Brazed |
| Cooling Capacity | : | 40000 Btu/hr |
| Dimensions | : | 45-1/4 in H x 30-3/4 in W x 30-3/4 in D |
| EER Rating | : | 13 |
| Finish | : | Galvanized/Polyester Urethane-Coated |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 40 A |
| HP Rating | : | 1/4 hp |
| Liquid Line Size | : | 3/8 in |
| Material | : | Steel |
| Motor Type | : | PSC |
| Nominal Capacity | : | 2 to 5 ton |
| Number of Stages | : | 1 |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 16 |
| Series | : | WSA2BF Series |
| Sound Level | : | 79 dB |
| Suction Line Size | : | 7/8 in |
| Voltage Rating | : | 208/230 V |
- Copeland scroll compressor: copeland's proven and simple design equates to years of comfort and reliability for the homeowner with virtually silent operation
- Copeland scroll UltraTech™ compressor - the UltraTech™ compressor operates with two-stages of cooling capacity to provide superior comfort and efficiency
- Copeland proven and simple design equates to years of comfort and reliability for the homeowner with virtually silent operation
- Full service valves - these brass valves are easily accessible and simplify servicing of the refrigeration system
- Designed using galvanized steel - with a polyester urethane coat finish, it passes 950 hr of salt spray per ASTM Std B117
- Composite base pan - absorbs sound and is corrosion-resistant, composite is also stronger and lighter than steel
- Permanently lubricated motor - a heavy-duty PSC motor for long-lasting reliability and quiet operation, requires no maintenance and is completely protected from rain and snow
- Removable top grille assembly - allows ease of service from the top without disconnecting fan motor leads
- High pressure switch - protects against abnormally high system pressures, auto-reset feature prevents nuisance service visits
- Liquid line filter drier - included with unit, field installed
- One-piece top/orifice - designed for maximum airflow and quiet operation
- Easy compressor and control access - designed to make servicing easier for the contractor, access panels are provided to all controls and the compressor from the side of the unit
- All aluminum coils: all aluminum coils in all models which provides high corrosion resistance
- Powder-coated wire guard and mesh hail guard - will never rust and protects the coil from being damaged by balls, lawnmowers, hail and more
