AireForce® Q6SEX30K AFQ6SEX30K
  1. pin-int

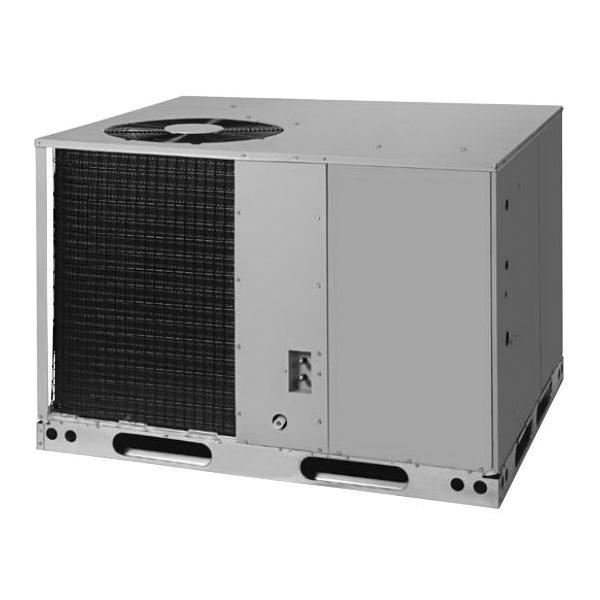

AireForce® Q6SEX30K Single-Packaged Heat Pump, 2.5 ton Nominal, 26800 Btu/hr Heating BTU, 208/230 V, 24.4 A, 3600 cfm

  • Manufacturer: Aireforce
  • Brand Name: AireForce®
  • Part#: AFQ6SEX30K
  • MPN: Q6SEX30K
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at All Branches

The Q6 Series single packaged heat pumps are high efficiency self-contained cooling and heating units that can be installed on a roof or on a slab. The convertible unit design makes installations simple in all applications. Units are ETL and ETLc listed.

AireForce® Single-Packaged Heat Pump, Series: Q6SE Series, 2.5 ton Nominal Capacity, Cooling BTU Rating: 28000 Btu/hr, Heating BTU Rating: 26800 Btu/hr, 208/230 V, 24.4 A, 1/2 hp HP Rating, 60 Hz, 1 ph, 825 rpm Rotational Speed, Scroll Compressor, CFM Rating: 3600 cfm, 14 SEER, HSPF: 8, 11 EER, R-410A, 73 dB, Steel, Galvanized/Polyester Urethane-Coated, 55.8 in L x 47.5 in W x 39 in H, Additional Information: PSC Motor

Additional Information      :      PSC Motor
Amperage Rating      :      24.4 A
CFM Rating      :      3600 cfm
Compressor Type      :      Scroll
Cooling BTU Rating      :      28000 Btu/hr
Dimensions      :      55.8 in L x 47.5 in W x 39 in H
EER Rating      :      11
Finish      :      Galvanized/Polyester Urethane-Coated
Frequency Rating      :      60 Hz
HP Rating      :      1/2 hp
HSPF Rating      :      8
Heating BTU Rating      :      26800 Btu/hr
Material      :      Steel
Nominal Capacity      :      2.5 ton
Phase      :      1 ph
Refrigerant Type      :      R-410A
Rotational Speed      :      825 rpm
SEER Rating      :      14
Series      :      Q6SE Series
Sound Level      :      73 dB
Voltage Rating      :      208/230 V
  • Copeland compressor state of the art scroll compressor is standard equipment
  • Quiet operation and low vibration swept-wing fan blade, on select models, combined with custom venture condenser fan
  • Wire guard-coated with earth friendly epoxy and plastic mesh hail guard a guard that will never rust and protects the units coil from being damaged
  • Copper tube/aluminum fin coils both indoor and outdoor coils are designed to optimize heat transfer, minimize size and cost and increase durability and reliability
  • Designed using galvanized steel with a polyester urethane coat finish
  • The 950 hr salt spray finish is 1.5 mil THK and resists corrosion 50% better than comparable units
  • Permanently lubricated condenser motor a heavy-duty PSC motor for long lasting reliability and quiet operation
  • Requires no maintenance and is completely protected from rain and snow
  • Thermostatic expansion valves factory installed externally equalized thermostatic expansion valves provides precise refrigerant control under varying load conditions
  • High and low pressure switches ensure long compressor life
  • Externally accessible service ports quick access to refrigeration system
  • Liquid line filter drier factory installed at a convenient location for service
  • Suction accumulator protection from liquid flood back and future compressor failures
  • Low voltage transformer includes 3 A fuse to protect low voltage circuit
  • Corrosion-resistant drain pan quickly drains away evaporator condensate
  • Energy efficient brushless DC (ECM) blower motor
  • Demand defrost standard provides additional energy savings in heating by defrosting only when necessary
  • Five-minute restart time delay when the unit shuts down, a five-minute delay keeps the unit from restarting, eliminating the highest cause for compressor failure
  • Heavy-gauge, full perimeter base rails facilitates forklift handling and curb mounting
  • Convertible air delivery horizontal or downflow to accommodate rooftop or horizontal applications
