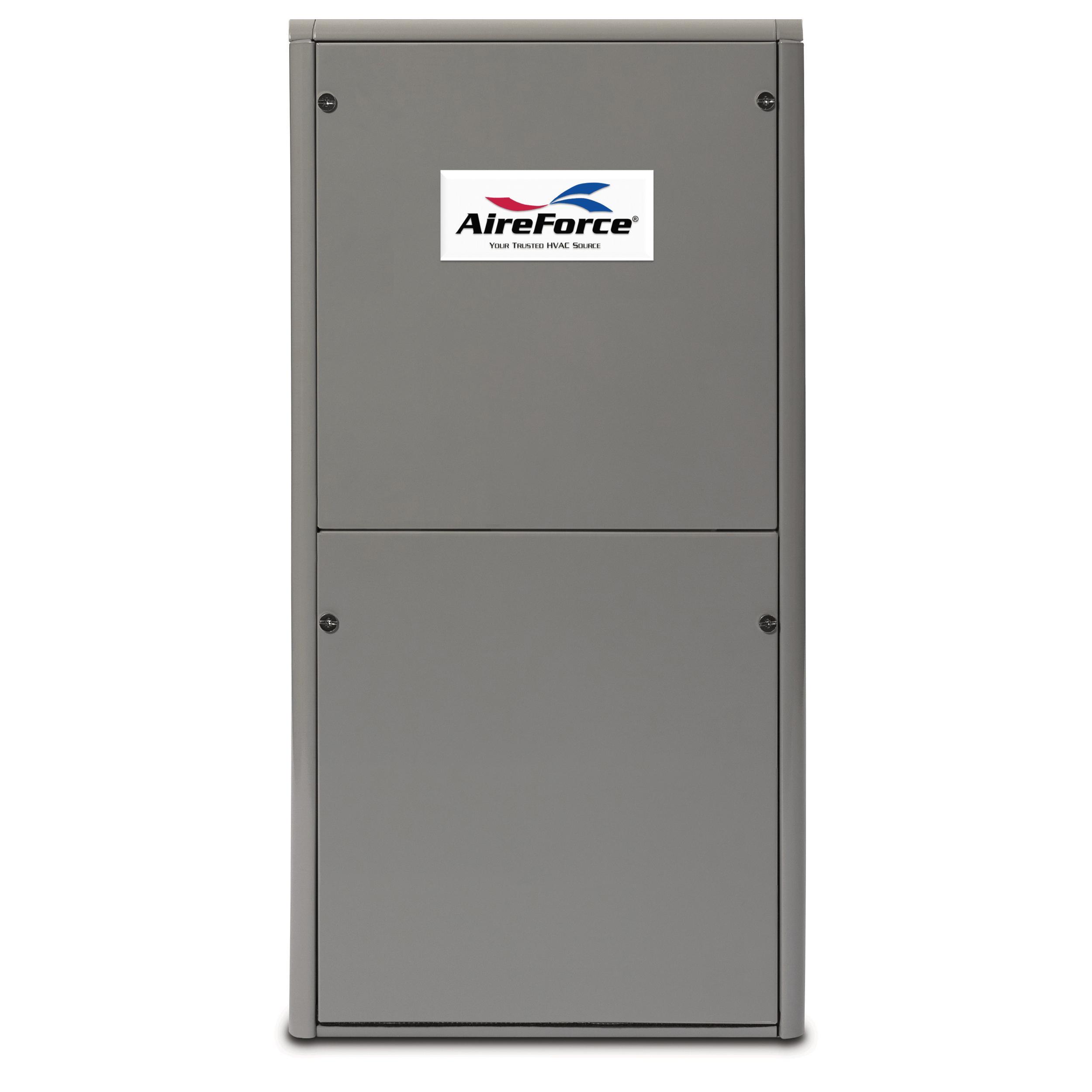

AireForce® KG7SA054C23A1 Gas Furnace, 80 % AFUE, Horizontal, Upflow, Gas
- Manufacturer: Aireforce
- Brand Name: AireForce®
- Part#: AFKG7SA054C23A1
- MPN: KG7SA054C23A1
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
The gas furnace may be installed free-standing in a utility room, basement or enclosed in an alcove or closet. The rounded corner jacket provides a pleasing "appliance appearance". Design certified by CSA for application in Canada and the United States.
AireForce® Gas Furnace, Series: KG7SA, 54000 Btu/hr Input, 80 % AFUE, 1 Stage, Horizontal, Upflow Configuration, Gas, 34-1/2 in H x 14-1/4 in W x 28 in D Cabinet, ECM Motor, 2.3 ton Tonnage, Hot Surface Ignition, Silicon Nitride Ignition
| AFUE Rating | : | 80 % |
| Cabinet Dimensions | : | 34-1/2 in H x 14-1/4 in W x 28 in D |
| Configuration | : | Horizontal, Upflow |
| Fuel Type | : | Gas |
| Ignition System | : | Hot Surface |
| Ignition Type | : | Silicon Nitride |
| Input BTU Rating | : | 54000 Btu/hr |
| Motor Type | : | ECM |
| Number of Stages | : | 1 |
| Series | : | KG7SA Series |
| Tonnage | : | 2.3 ton |
- 100% fired and tested all units and each component are tested on the manufacturing line
- Best packaging in the industry unique corner post design assures product will arrive to the homeowner dent-free
- Low boy height - easy to apply in low ceiling applications, works well with taller high SEER coils, easier to handle and install
- Tubular primary heat exchanger heavy gauge aluminized steel heat exchanger assures a long life
- 30 sec blower delay at start-up assures a warm duct temperature at furnace start-up
- Adjustable blower off settings (60 sec, 90 sec, 120 sec and 180 sec)
- 30 sec post purge increases life of heat exchanger
- Hot surface igniter innovative application of a silicon nitride-type igniter
- Utilizes proven SmartLite® technology
- Color-coded wire harness designed to fit the components, all with quick-connect fittings for ease of service and replacement
- High static blowers all models equipped with high static blowers
- 60 sec cooling cycle blower off delay (TDR) increases cooling performance when matched with a Nortek Global HVAC coil
- Flexible category I venting system may be vented with dedicated venting system or common vented with other category one appliances
- Multi-speed direct drive blower energy efficient brushless DC (ECM)
- Designed to give a wide range of cooling capacities
- Dip switches on PCB provide easy motor speed selection
- LP convertible simple burner orifice and regulator spring change for ease of convertibility
- Integrated control board incorporates connections for electronic air cleaner and humidifier
- Ergonomically located for ease of service
- Two-piece door design enhances furnace appearance and uses captured screws to prevent losing door screws
