AireForce® JT4BE024KA AFJT4BE024KA
  1. pin-int

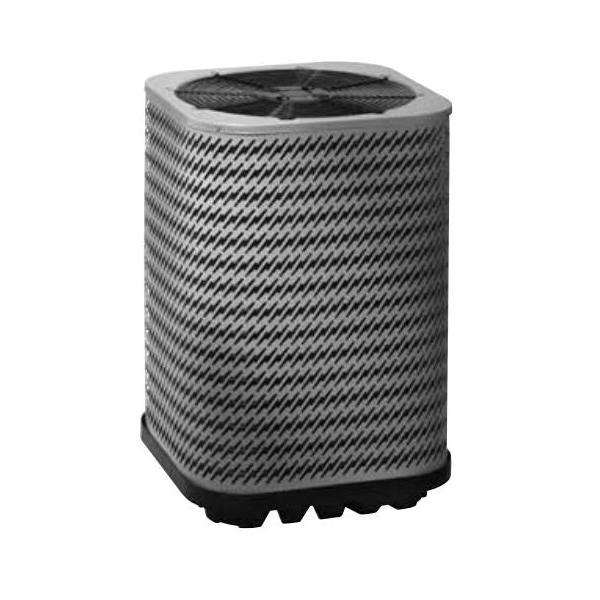

AireForce® JT4BE Series JT4BE024KA High Efficiency Heat Pump, 208/230 V, 14.4 A, 24000 Btu/hr BTU, 0.13 hp, 1 ph Phase

  • Manufacturer: Aireforce
  • Brand Name: AireForce®
  • Part#: AFJT4BE024KA
  • MPN: JT4BE024KA
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at All Branches

The JT4BE Series of heat pumps offers exceptional performance. The unit, when combined with our engineered coils or air handlers, offers a full line of quality, split system cooling and heating equipment.

AireForce® High Efficiency Heat Pump, JT4BE Series, 208/230 V, 14.4 A, 0.13 hp, 60 Hz, 1 ph Phase, 24000 Btu/hr, 980 cfm, 11.5 EER Rating, 14 SEER, 8.2 HSPF, Brazed Connection, 3/8 in Liquid Line, 3/4 in Suction Line, 30 A Fuse Rating, Tonnage: 2 ton, 75 dB Sound Level, Steel, Finish: Galvanized/Polyester Urethane-Coated, 31-1/2 in H x 30-3/4 in W x 30-3/4 in D, Additional Information: 17.5 sq-ft Face Area, PSC Motor, 14 Fins per Inch

Additional Information      :      17.5 sq-ft Face Area, PSC Motor, 14 Fins per Inch
Amperage Rating      :      14.4 A
BTU Rating      :      24000 Btu/hr
CFM Rating      :      980 cfm
Connection Type      :      Brazed
Dimensions      :      31-1/2 in H x 30-3/4 in W x 30-3/4 in D
EER Rating      :      11.5
Finish      :      Galvanized/Polyester Urethane-Coated
Frequency Rating      :      60 Hz
Fuse Rating      :      30 A
HP Rating      :      0.13 hp
HSPF Rating      :      8.2
Liquid Line Size      :      3/8 in
Material      :      Steel
Phase      :      1 ph
SEER Rating      :      14
Series      :      JT4BE Series
Sound Level      :      75 dB
Suction Line Size      :      3/4 in
Tonnage      :      2 ton
Voltage Rating      :      208/230 V
  • Composite base pan absorbs sound and is corrosion-resistant
  • Composite is also stronger and lighter than steel
  • Permanently lubricated motor a heavy-duty PSC motor for long lasting reliability and quiet operation
  • Requires no maintenance and is completely protected from rain and snow
  • Durable, attractive cabinet designed using galvanized steel with a polyester urethane finish
  • The 950 hr salt spray finish is 1.5 mil THK and resists corrosion 50% better than comparable units
  • Removable top grille assembly allows ease-of service from the top without disconnecting fan motor leads
  • High pressure switch protects against abnormally high system pressures
  • Auto-reset feature prevents nuisance service visits
  • One-piece top/orifice designed for maximum airflow and quiet operation
  • When the unit shuts down, a five-minute delay keeps the unit from restarting, eliminating the highest cause for compressor failure
  • Suction accumulator protection from liquid flood back and future compressor failures
  • Hot gas muffler reduces compressor noise and vibration
  • Easy compressor and control access designed to make servicing easier for the contractor, access panels are provided to all controls and the compressor from the side of the unit
  • Complete metal wrapper protects the units coil from being damaged
  • Fixed orifice integrated in liquid line service valve for easy change out
  • Micro-channel coils all aluminum coils in all models which provides high corrosion resistance
