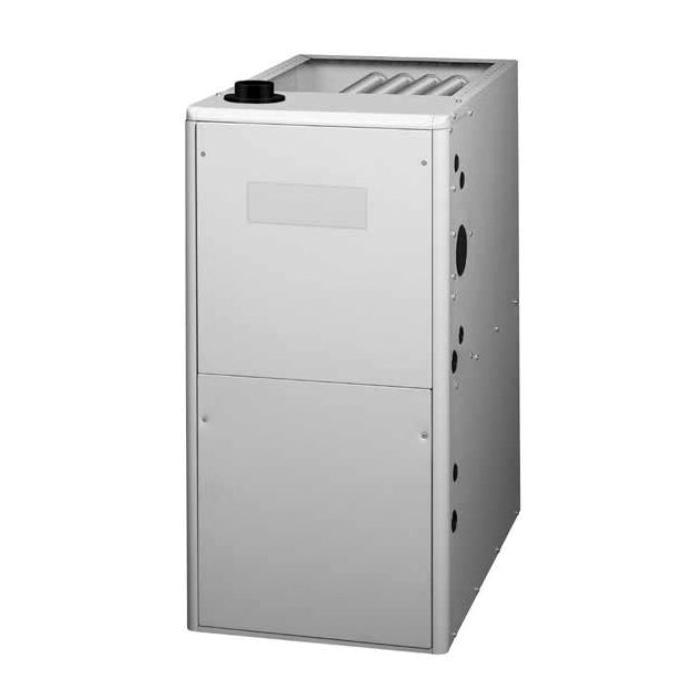

AireForce® FG7TL100D35C1 Gas Furnace, 115 V, 3/4 hp, 95.1 % AFUE, Downflow, Liquid Propane Gas, Natural Gas
- Manufacturer: Aireforce
- Brand Name: AireForce®
- Part#: AFFG7TL100D35C1
- MPN: FG7TL100D35C1
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
The high efficiency upflow gas furnace may be installed free-standing in a utility room, basement or enclosed in an alcove or closet. Upflow/horizontal units come ready for upflow or horizontal application. The extended flush jacket provides a pleasing "appliance appearance". Design certified by CSA for application in Canada and the United States.
AireForce® Gas Furnace, Series: FG7TL, 100000 Btu/hr Input, 95000 Btu/hr Output, 115 V, 8.7 A, 3/4 hp Rating, 95.1 % AFUE, 60 Hz, 2 Stage, Downflow Configuration, NPT Connection Type, 1/2 in Connection, Liquid Propane Gas, Natural Gas, 10 in Dia x 10 in W Blower, 34-1/2 in H x 24-1/2 in W x 28 in D Cabinet, Fixed Speed ECM Motor, 3.5 ton Tonnage, Hot Surface Ignition, Silicon Nitride Ignition, 0.5 in-WC, 35 to 65 deg F Rise
| AFUE Rating | : | 95.1 % |
| Amperage Rating | : | 8.7 A |
| Blower Size | : | 10 in Dia x 10 in W |
| Cabinet Dimensions | : | 34-1/2 in H x 24-1/2 in W x 28 in D |
| Configuration | : | Downflow |
| Connection Size | : | 1/2 in |
| Connection Type | : | NPT |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Liquid Propane Gas, Natural Gas |
| HP Rating | : | 3/4 hp |
| Ignition System | : | Hot Surface |
| Ignition Type | : | Silicon Nitride |
| Input BTU Rating | : | 100000 Btu/hr |
| Motor Type | : | Fixed Speed ECM |
| Number of Stages | : | 2 |
| Output BTU Rating | : | 95000 Btu/hr |
| Pressure Rating | : | 0.5 in-WC |
| Series | : | FG7TL Series |
| Temperature Rise | : | 35 to 65 deg F |
| Tonnage | : | 3.5 ton |
| Voltage Rating | : | 115 V |
- iSEER energy efficient brushless DC (ECM) motor gives up to 1 SEER point efficiency gain in cooling
- 100% fired and tested all units and each component are tested on the manufacturing line
- Best packaging in the industry unique corner post design assures product will arrive to the homeowner dent-free
- 30 sec blower delay at start-up assures a warm duct temperature at furnace start-up
- Adjustable blower off settings (60 sec, 90 sec, 120 sec and 180 sec)
- 30 sec post purge increases life of heat exchanger
- Hot surface igniter innovative application of a silicon nitride-type igniter
- Utilizes proven SmartLite® technology
- Color-coded wire harness designed to fit the components, all with quick-connect fittings for ease of service and replacement
- Flexible category IV venting system may be vertically or horizontally vented using either a one-pipe or two-pipe system for maximum flexibility in installation
- High static blowers all models equipped with high static blowers
- Low boy height - easy to apply in low ceiling applications, works well with taller high SEER coils, easier to handle and install
- Tubular primary heat exchanger heavy gauge aluminized steel heat exchanger and stainless steel secondary heat exchanger assures a long life
- 90 sec fixed cooling cycle blower off delay (TDR) increases cooling performance when matched with a Nortek Global HVAC coil
- Variable speed blower kit upgradable to full variable speed with kit
- LP convertible simple burner orifice and regulator spring change for ease of convertibility
- Diagnostic lights for easy troubleshooting without counting flashes dedicated light for flame signal strength and two lights in combination to indicate all other fault codes with easy to recognize states without counting flashes
- Incorporates integrated control board with connections for electronic air cleaner and humidifier
- Two-piece door design enhances furnace appearance and uses captured screws to prevent losing door screws
- Blower compartment sealed door to reduce air leakage and insulated for ultra-quiet operation
