AireForce® B6EMMX60K-C AFB6EMMX60KC
  1. pin-int

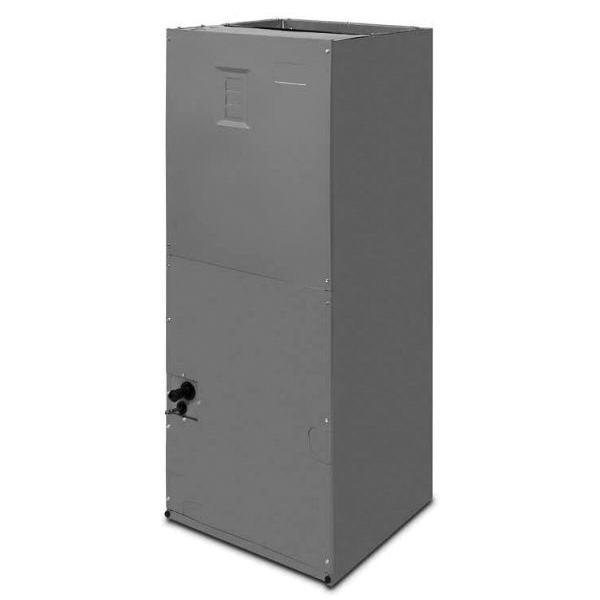

AireForce® B6EMMX60K-C Indoor Air Handler With TXV Valve, 2000 cfm, 208/230 V, 30 kW, 3/4 hp, 60 Hz, 1 ph-Phase

  • Manufacturer: Aireforce
  • Brand Name: AireForce®
  • Part#: AFB6EMMX60KC
  • MPN: B6EMMX60K-C
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at All Branches

The B6EMMX Series of air handlers, when combined with our heat pump or air conditioner, offers a full line of quality, split system heating and cooling equipment.

AireForce® Indoor Air Handler, Series: B6EMMX Series, 60000 Btu/hr Cooling, 208/230 V, 30 kW, 3/4 hp HP Rating, 60 Hz, 1 ph, CFM Rating: 2000 cfm, Downflow, Horizontal, Upflow, Vertical Configuration, 14 to 15 SEER, R-410A, 3/8 in Liquid Line, 7/8 in Suction Line, 20 x 20 x 1 in Filter, ECM Motor, Steel, Galvanized/Polyurethane, 56 in H x 22-1/2 in W x 22 in D, Additional Information: 12-7/8 x 21 in Supply Air Outlet

Additional Information      :      12-7/8 x 21 in Supply Air Outlet
CFM Rating      :      2000 cfm
Configuration      :      Downflow, Horizontal, Upflow, Vertical
Cooling Capacity      :      60000 Btu/hr
Dimensions      :      56 in H x 22-1/2 in W x 22 in D
Filter Size      :      20 x 20 x 1 in
Finish      :      Galvanized/Polyurethane
Frequency Rating      :      60 Hz
HP Rating      :      3/4 hp
Liquid Line Size      :      3/8 in
Material      :      Steel
Motor Type      :      ECM
Phase      :      1 ph
Refrigerant Type      :      R-410A
SEER Rating      :      14 to 15
Series      :      B6EMMX Series
Suction Line Size      :      7/8 in
Voltage Rating      :      208/230 V
Wattage      :      30 kW
  • Energy efficient fixed speed ECM motor - provides 16 field selectable cooling airflows and 16 field selectable heating airflows to match any application
  • Quiet blower operation - extra quiet and smooth blower on and off cycles
  • Reduced air stratification - this results in improved air quality by optimizing humidity removal and filtration capabilities
  • Multi-poised - can be used in horizontal, upflow, downflow and vertical applications
  • Built-in filter rack - makes the air handler easy to service
  • Circuit board - incorporating blower time delay relay, low voltage terminal strip and heat strip sequencing
  • Breaker accessibility - breaker accessible from the front of the unit when heater is applied
  • Plastic drain pan - provides corrosion resistance
  • Durable cabinet - galvanized steel with a polyurethane finish, the finish will endure 950 hr of salt spray and resist corrosion 50% better than comparable units
  • Designed to meet the requirements 610.2.A.2 - meets florida building code requirements for air leakage
  • Thermal expansion valve - factory installed externally equalized thermal expansion valve provides precise refrigerant control under varying load conditions
  • Cabinet insulation - 1 in insulation with an R-value of 4.2 contributes to quiet operation and prevents cabinet sweating in difficult applications
  • Aluminum coil technology - all aluminum coil provides high corrosion resistance
