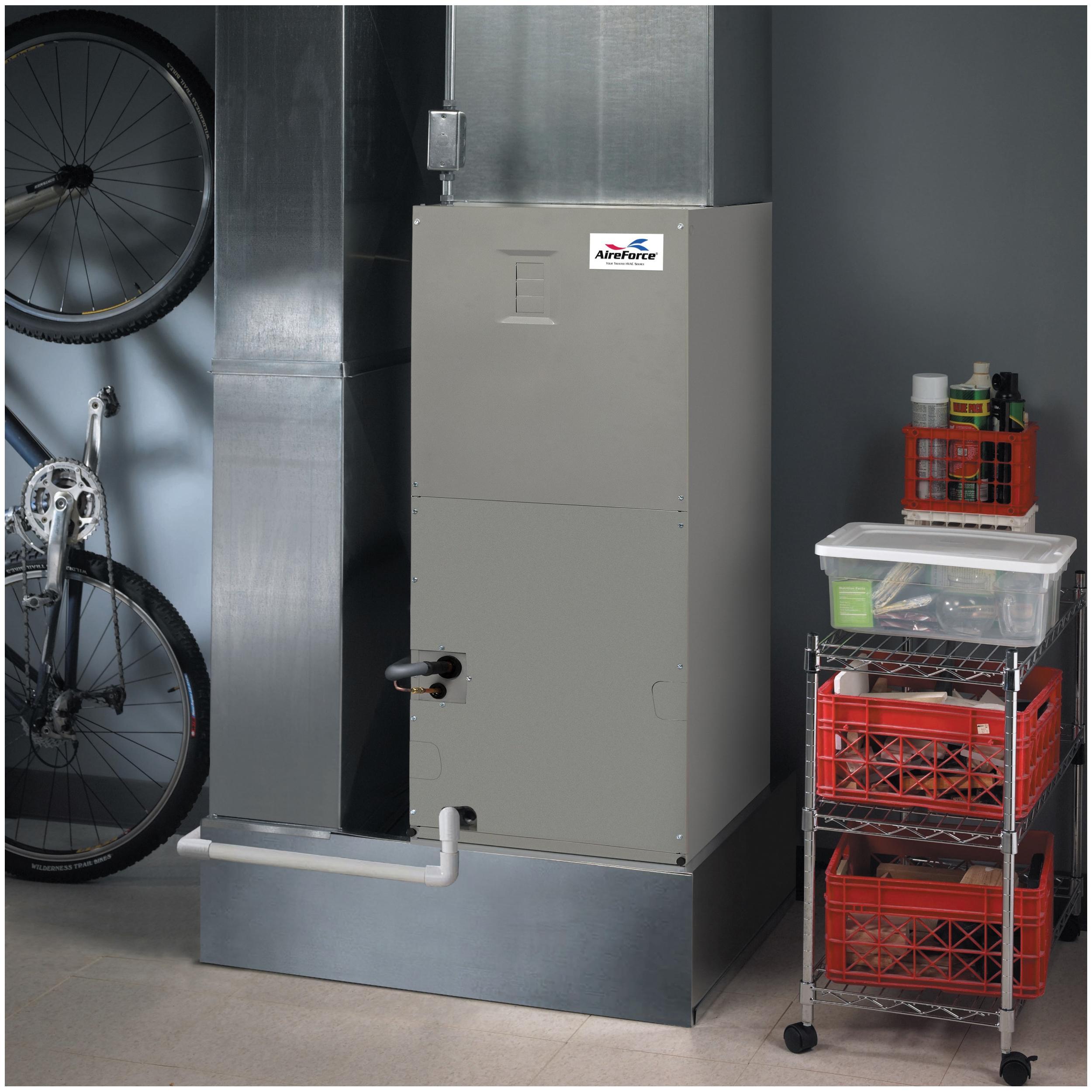

AireForce® B64VMMX60K-C Indoor Air Handler With TXV Valve and ECM Blowers, 1800 cfm, 208/230 V, 25 kW, 1 hp, 60 Hz
- Manufacturer: Aireforce
- Brand Name: AireForce®
- Part#: AFB64VMMX60KC
- MPN: B64VMMX60K-C
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
The B64VMMX Series of air handlers, when combined with our heat pump or air conditioner, offers a full line of quality, split system heating and cooling equipment.
AireForce® Indoor Air Handler, Series: B64VMMX Series, 60000 Btu/hr Cooling, 208/230 V, 25 kW, 1 hp HP Rating, 60 Hz, 1 ph, CFM Rating: 1800 cfm, Downflow, Horizontal, Upflow, Vertical Configuration, R-410A, 3/8 in Liquid Line, 7/8 in Suction Line, 20 x 20 x 1 in Filter, Variable Speed ECM Motor, Steel, Galvanized/Polyurethane, 56 in H x 22-1/2 in W x 22 in D, Additional Information: 12-7/8 x 21 in Supply Air Outlet
| Additional Information | : | 12-7/8 x 21 in Supply Air Outlet |
| CFM Rating | : | 1800 cfm |
| Configuration | : | Downflow, Horizontal, Upflow, Vertical |
| Cooling Capacity | : | 60000 Btu/hr |
| Dimensions | : | 56 in H x 22-1/2 in W x 22 in D |
| Filter Size | : | 20 x 20 x 1 in |
| Finish | : | Galvanized/Polyurethane |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1 hp |
| Liquid Line Size | : | 3/8 in |
| Material | : | Steel |
| Motor Type | : | Variable Speed ECM |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-410A |
| Series | : | B64VMMX Series |
| Suction Line Size | : | 7/8 in |
| Voltage Rating | : | 208/230 V |
| Wattage | : | 25 kW |
- Energy efficient variable speed ECM motor - advanced technology provides 16 field selectable cooling airflows and automatically sets heating airflows based on the amount of installed heat
- Quiet blower operation - extra quiet and smooth blower on and off cycles
- Constant airflow - motor automatically adjusts to different static loads
- Reduced air stratification - this results in improved air quality by optimizing humidity removal and filtration capabilities
- Multi-poised - can be used in horizontal, upflow, downflow and vertical applications
- Built-in filter rack - makes the air handler easy to service
- Circuit board - incorporating blower time delay relay, low voltage terminal strip and heat strip sequencing
- Breaker accessibility - breaker accessible from the front of the unit when heater is applied
- Plastic drain pan - provides corrosion resistance
- Durable cabinet - galvanized steel with a polyurethane finish, the finish will endure 950 hr of salt spray and resist corrosion 50% better than comparable units
- Designed to meet the requirements 610.2.A.2 - meets florida building code requirements for air leakage
- Thermal expansion valve - factory installed externally equalized thermal expansion valve provides precise refrigerant control under varying load conditions
- Cabinet insulation - 1 in insulation with an R-value of 4.2 contributes to quiet operation and prevents cabinet sweating in difficult applications
- Aluminum coil technology - all aluminum coil provides high corrosion resistance
