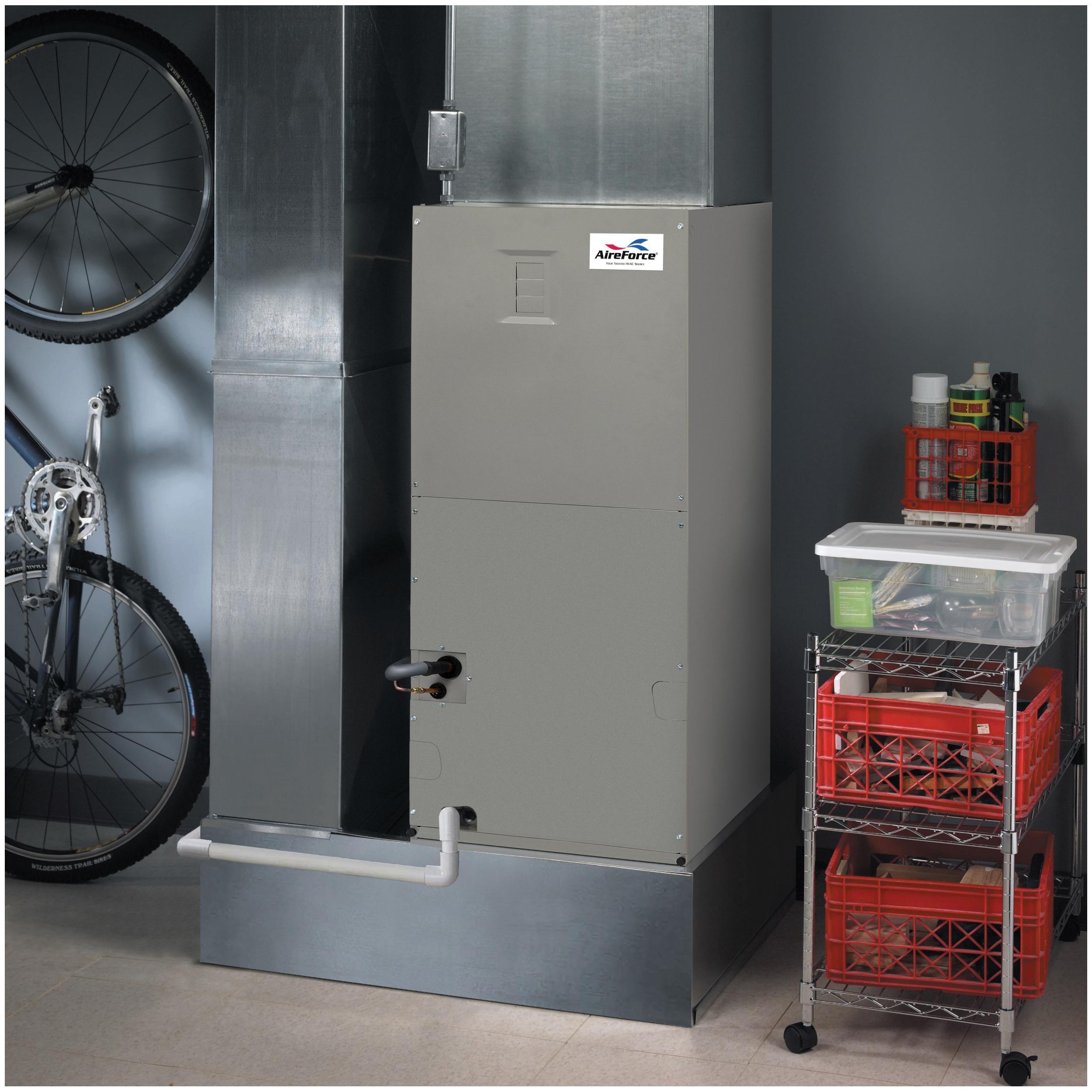

AireForce® B64BMMX24K-A Indoor Air Handler With TXV Valve, 208/230 V, 8 kW, 1/5 hp, 60 Hz, 1 ph-Phase
- Manufacturer: Aireforce
- Brand Name: AireForce®
- Part#: AFB64BMMX24KA
- MPN: B64BMMX24K-A
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
The B64BMMX Series of air handlers, when combined with our heat pump or air conditioner, offers a full line of quality, split system heating and cooling equipment.
AireForce® Indoor Air Handler, Series: B64BMMX Series, 24000 Btu/hr Cooling, 208/230 V, 8 kW, 1/5 hp HP Rating, 60 Hz, 1 ph, Downflow, Horizontal, Upflow, Vertical Configuration, Plug-In Wire Connection Type, R-410A, 3/8 in Liquid Line, 3/4 in Suction Line, 12 x 20 x 1 in Filter, Surface Mount, Steel, Galvanized/Polyester Urethane-Coated, 43-5/16 in H x 14-3/16 in W x 22 in D, Additional Information: 12-7/8 x 12-3/4 in Supply Air Outlet
| Additional Information | : | 12-7/8 x 12-3/4 in Supply Air Outlet |
| Configuration | : | Downflow, Horizontal, Upflow, Vertical |
| Connection Type | : | Plug-In Wire |
| Cooling Capacity | : | 24000 Btu/hr |
| Dimensions | : | 43-5/16 in H x 14-3/16 in W x 22 in D |
| Filter Size | : | 12 x 20 x 1 in |
| Finish | : | Galvanized/Polyester Urethane-Coated |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/5 hp |
| Liquid Line Size | : | 3/8 in |
| Material | : | Steel |
| Mounting Type | : | Surface |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-410A |
| Series | : | B64BMMX Series |
| Suction Line Size | : | 3/4 in |
| Voltage Rating | : | 208/230 V |
| Wattage | : | 8 kW |
- Durable, attractive cabinet - designed using galvanized steel, the door is also galvanized steel, with a polyester urethane finish, the 950 hr salt spray finish resists corrosion 50% better than comparable units, the plastic drain pan is corrosion-resistant
- Multi-poised - can be used in horizontal, upflow, downflow and vertical applications
- Multi-speed - gives flexibility of installation
- Ease-of-service - plug-in wire connections and built-in filter rack makes the air handler easy to service
- Circuit board - incorporating blower time delay relay, low voltage terminal strip and heat strip sequencing
- Air handler control board - controls time sequencing of heat stages
- Breaker accessibility - breaker accessible from front of unit when heater is applied
- No fasteners on sides or back - smooth surfaces for ease-of installation
- Cabinet insulation - 1 in insulation with an R-value of 4.2 contributes to quiet operation and prevents cabinet sweating in difficult applications
- Designed to meet the requirements 610.2.A.2 - meets florida building code requirements for air leakage
- Aluminum evaporator coil - all aluminum design to prevent leaks caused by corrosion formicary
