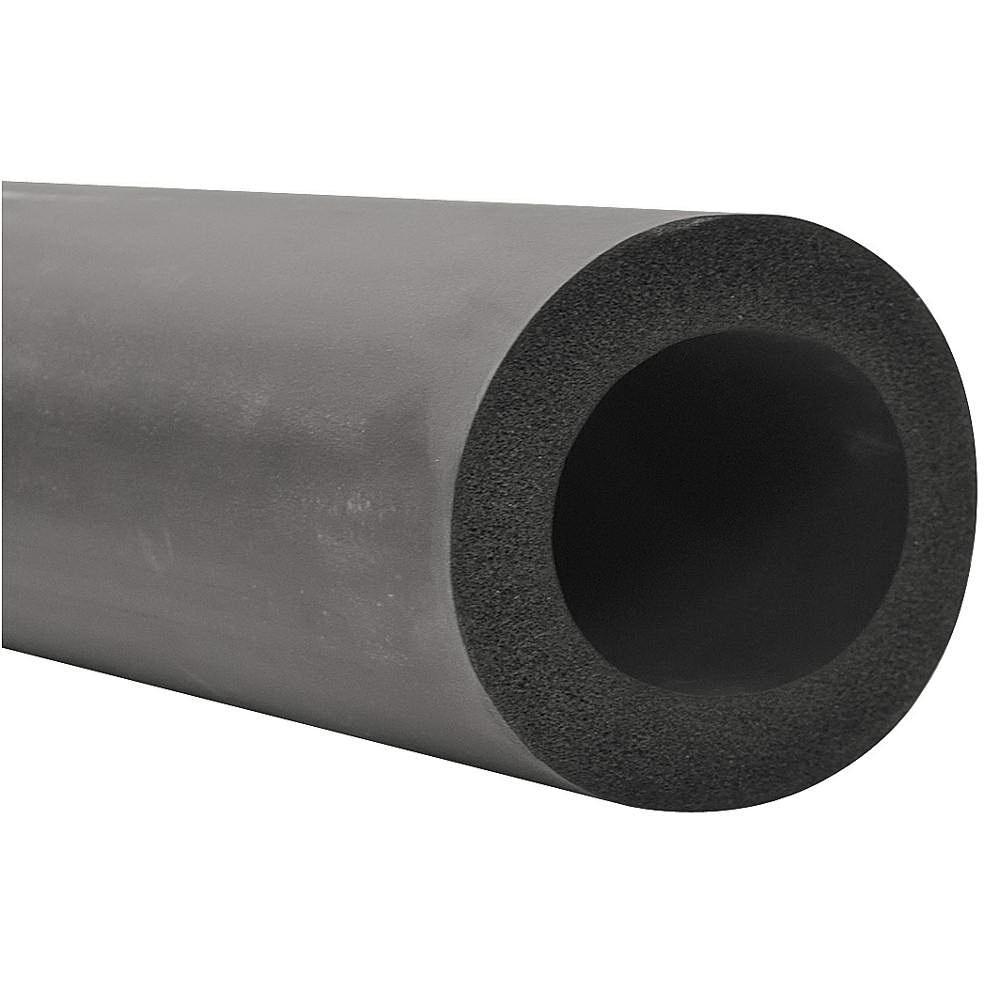

AEROFLEX® Aerocel® 306-AC3412 Expanded Pipe Insulation, For Pipe Size: 5/8 in, 1/2 in Thick Wall, 3/4 in ID, 6 ft L
- Manufacturer: Aeroflex USA, Inc
- Brand Name: AEROFLEX®
- Part#: BRA3412INS
- MPN: 306-AC3412
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
Aerocel tube and sheet insulation is a highly flexible, closed-cell and lightweight EPDM-rubber based elastomeric product. Aerocel tube and sheet insulation is designed for insulating warm or cold piping, duct, or equipment. The tightly formed, closed-cell structure of aerocel pipe and sheet insulation makes it an efficient insulation, providing superior insulating capacity to many materials, including other elastomeric insulations. The unique cell structure of aerocel EPDM insulation effectively retards the flow of moisture vapor. Aerocel is considered a low transmittance vapor retarder. In normal service conditions, aerocel requires no supplemental vapor retarder protection. When used in extremely low-temperature or extremely high humidity conditions, an additional vapor barrier maybe required.
AEROFLEX® Aerocel® Expanded Pipe Insulation, For Pipe Size: 5/8 in, 3/4 in Nominal, 3/4 in Inside Diameter, 1-3/4 in Outside Diameter, 1/2 in Wall Thickness, R-Value: R4.1, Density: 3 to 6 sq-ft/lb, 0.245 Btu-in/hr-sq-ft-deg F Thermal Conductivity, -297 to 300 deg F, CTS Connection, EPDM, Black, 6 ft Length
| Color | : | Black |
| Connection Type | : | CTS |
| Density | : | 3 to 6 sq-ft/lb |
| For Pipe Size | : | 5/8 in |
| Inside Diameter | : | 3/4 in |
| Length | : | 6 ft |
| Material | : | EPDM |
| Nominal Size | : | 3/4 in |
| Outside Diameter | : | 1-3/4 in |
| R-Value | : | R4.1 |
| Temperature Rating | : | -297 to 300 deg F |
| Thermal Conductivity | : | 0.245 Btu-in/hr-sq-ft-deg F |
| Wall Thickness | : | 1/2 in |
- Uv resistant-added weather protection not required, saves on first cost and maintenance
- Lower thermal conductivity-saves additional energy costs
- 300 deg upper use limit greater application range cryogenic to medium pressure steam
- E 84 25/50-2 in Thick lowers installation costs with fewer layers
- Versatile for heating, AC, refrigeration, solar and plumbing
- Easy to install-lowers installation costs, keeps job cost as estimated
- 0.245 thermal conductivity
- Resistant to moisture vapor flow
- Water vapor transmission, perms-0.03
