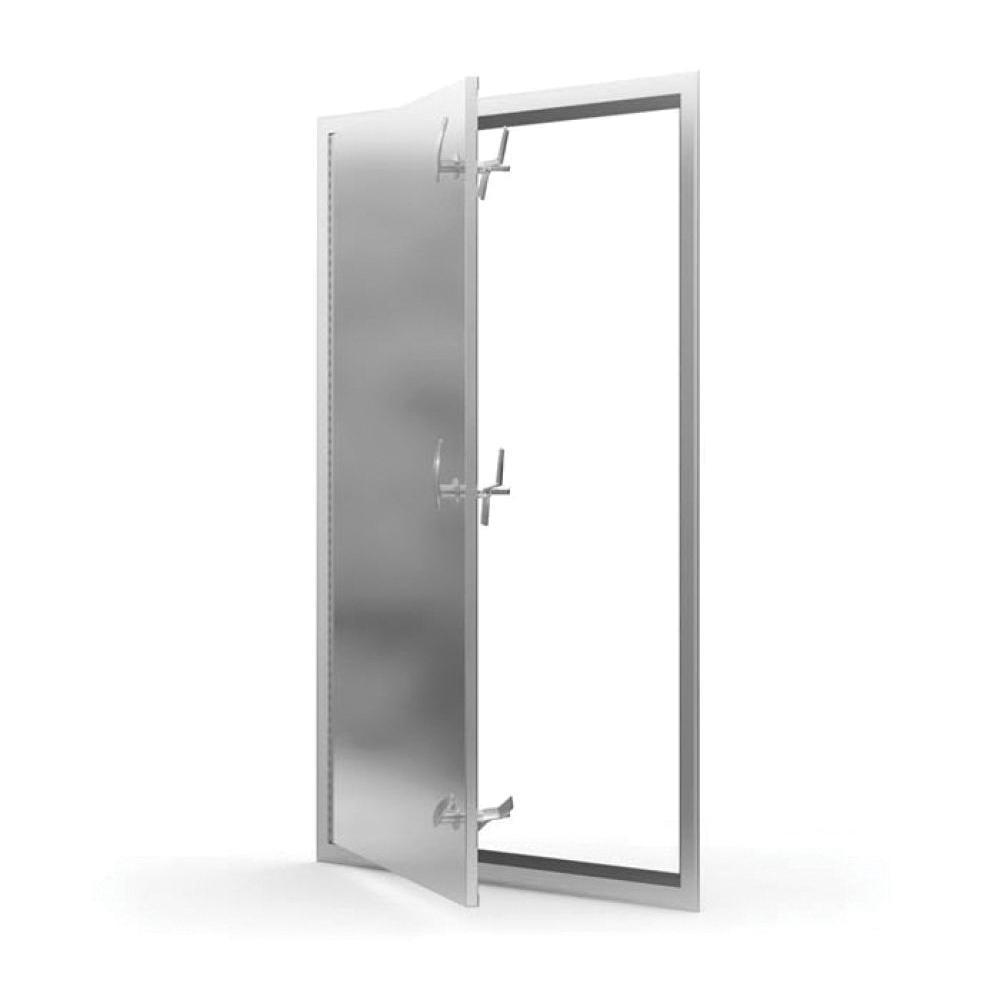

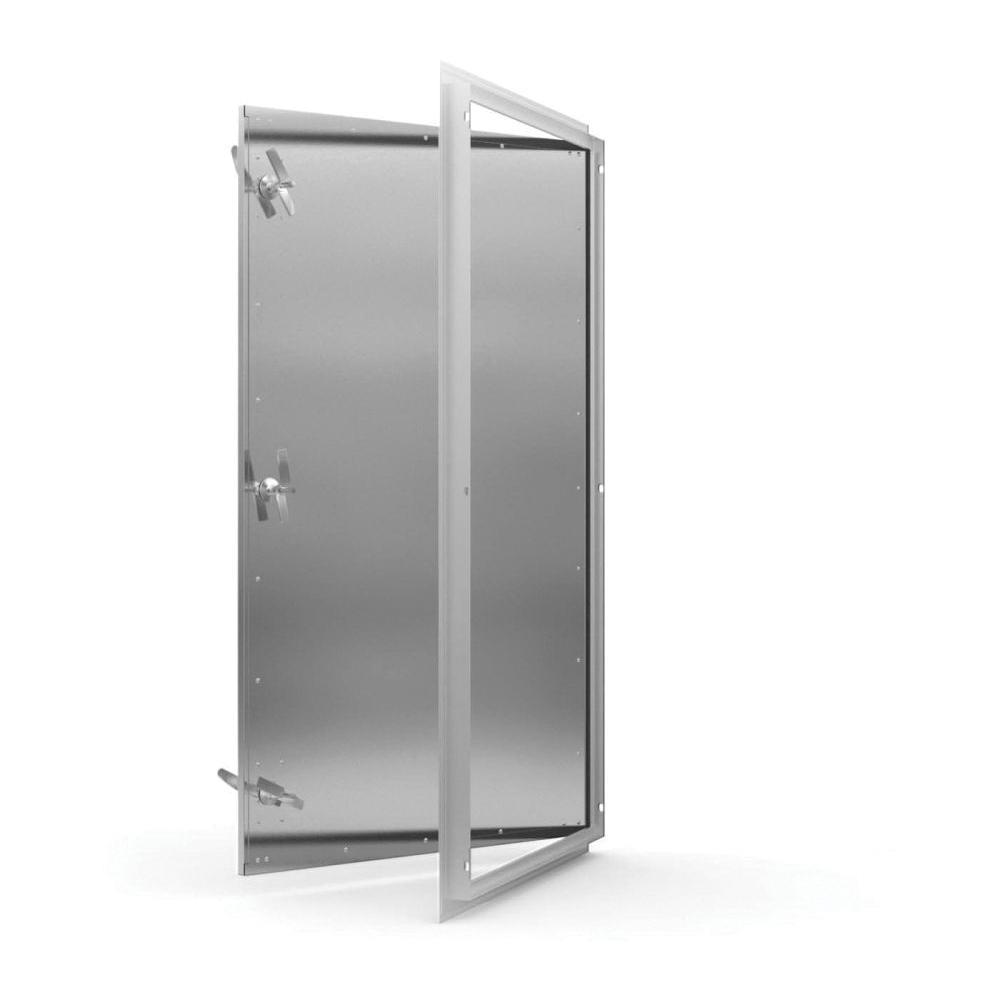

ACUDOR WD-80002436 Walk Through Access Door, 24 in W Door, 36 in H Door, Steel Door, Dual-Acting Compression Handle
- Manufacturer: Nelson Industrial Inc
- Brand Name: ACUDOR
- Part#: ACUWD2436
- MPN: WD-80002436
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
The ACUDOR WD-8000 is a steel walk through access door. The WD-8000 is designed to provide convenient custom walk through access to work interiors and air handling units.
ACUDOR Walk Through Access Door, 24 in Door Width, 36 in Door Height, 35-5/8 in Opening Width, 23-1/2 in Opening Height, Mill, 22 ga, R-Value: R4, Steel Door, Aluminum Frame, Fiberglass Insulation, Dual-Acting Compression Handle, 180 deg Continuous Piano Hinge, Additional Information: Two-Handles
| Additional Information | : | Two-Handles |
| Door Height | : | 36 in |
| Door Material | : | Steel |
| Door Width | : | 24 in |
| Finish | : | Mill |
| Frame Material | : | Aluminum |
| Gauge | : | 22 ga |
| Handle Type | : | Dual-Acting Compression |
| Hinge Type | : | 180 deg Continuous Piano |
| Insulation Material | : | Fiberglass |
| Opening Height | : | 23-1/2 in |
| Opening Width | : | 35-5/8 in |
| R-Value | : | R4 |
- Low to medium pressure systems and plenums
- Door panel filled with 1 in thick fiberglass insulation - 4 R-value
- Heavy-duty construction, along with a continuous hinge and compression handles
- Continuous steel piano hinge-opens 180 deg
Specification Sheet
Video Link
